Tip

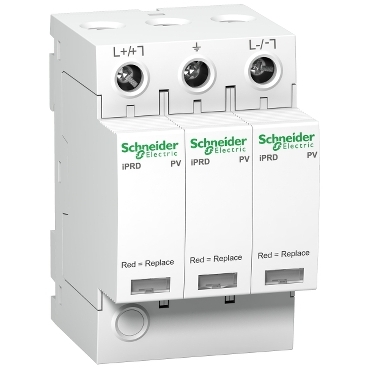

iPRD
Št. polov
2 P
Tip napetosti
DC
Napetost (V)
1000 V
Vrsta produkta
prenapetostna zaščita
Nazivni izpraznitveni tok (kA)
40 kA
Pomožni kontakt
da
Degree of protection (IP)
IP20
Mounting method
DIN rail (top hat rail) 35 mm
System configuration TN-C
No
System configuration DC
Yes
Nominal discharge surge current (8/20) (kA)
15
System configuration TN
No
System configuration IT
No
Voltage protection level (kV)
3.9
System configuration TT
No
System configuration TN-S
No
Signalling at the device
Optical
Max. discharge surge current (8/20) (kA)
40
System configuration TN-C-S
No
With remote signalling contact
Yes
System configuration other
No
Construction size
3 modular spacing
Integrated backup fuse
No
Category type 2
Yes
Number of conductors (without earthing)
2
Max. conductor cross section solid (solid, stranded) (mm²)
35
Max. conductor cross section flexible (fine-strand) (mm²)
35
Voltage protection level N-PE (kV)
3.9
Voltage protection level L-N (kV)
3.9
Max. continuous voltage DC (V)
1000
Nominal voltage DC (V)
1000
Max. PV-voltage (V)
1000
Integrated short-circuit protection
No
Leakage-current free
No
