Tip

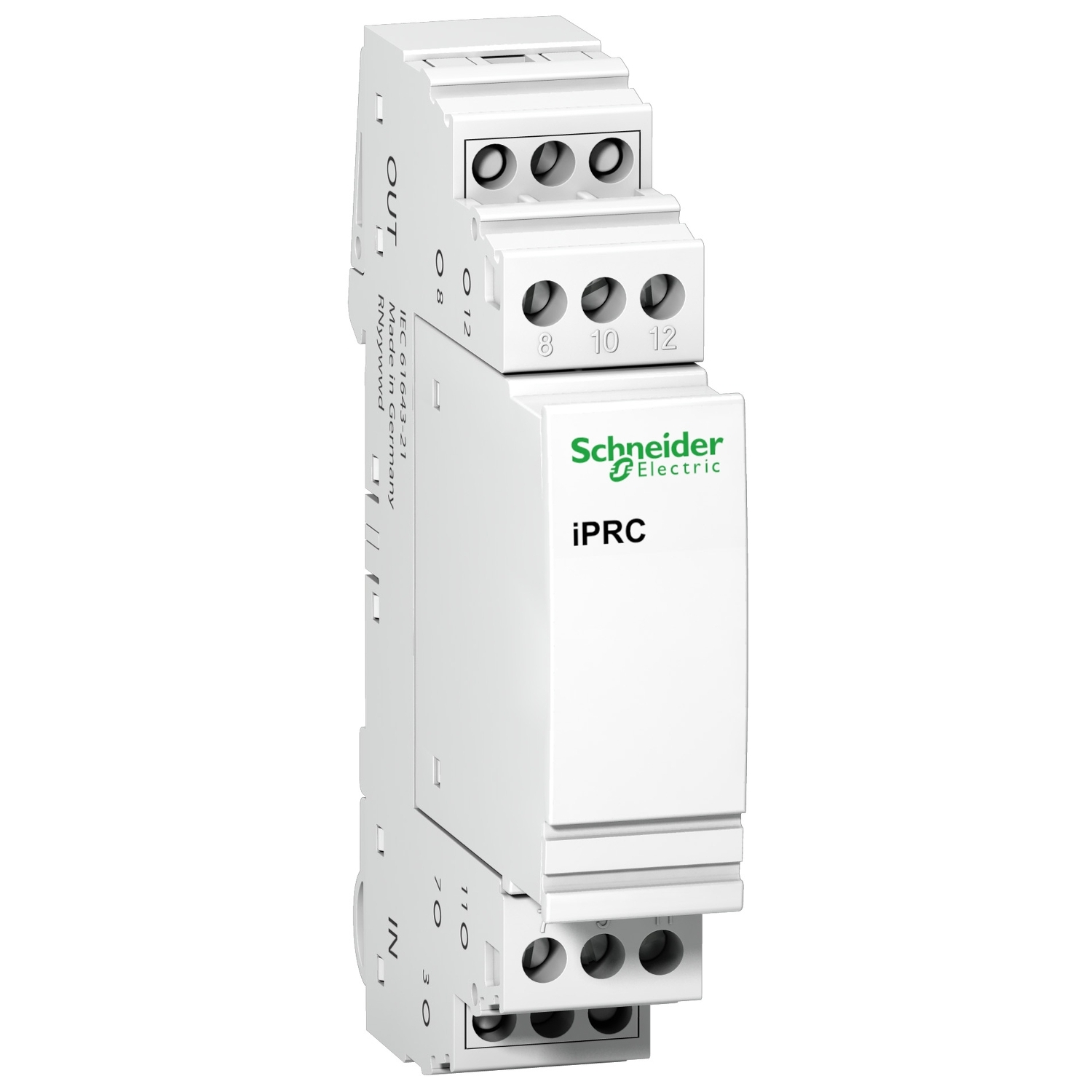

iPRC
Št. polov
2 P
Tip napetosti
AC
Napetost (V)
130 V
Vrsta produkta
prenapetostna zaščita
Nazivni izpraznitveni tok (kA)
10 kA
Pomožni kontakt
ne
Degree of protection (IP)
IP20
Mounting method
DIN rail (top hat rail) 35 mm
Explosion-tested version
No
Nominal discharge surge current (8/20) (kA)
10
Signalling at the device
None
With remote signalling contact
No
Max. continuous voltage AC (V)
130
Number of conductors (without earthing)
2
Voltage protection level core/earth (V)
200
Connection 1
Screw terminal
Limiting frequency (MHz)
0.05
Nominal load current (A)
0.45
Pro-active thermo-control
Yes
Max. continuous voltage DC (V)
180
Voltage protection level core/signal ground (V)
200
Nominal voltage AC (V)
130 Volt
Voltage protection level core/core (V)
160
Voltage protection level signal ground/protective ground (V)
160
Assembly width (Millimetre)
18
Earthing via
Separate conductor
Signal disconnection
Yes
