Tip

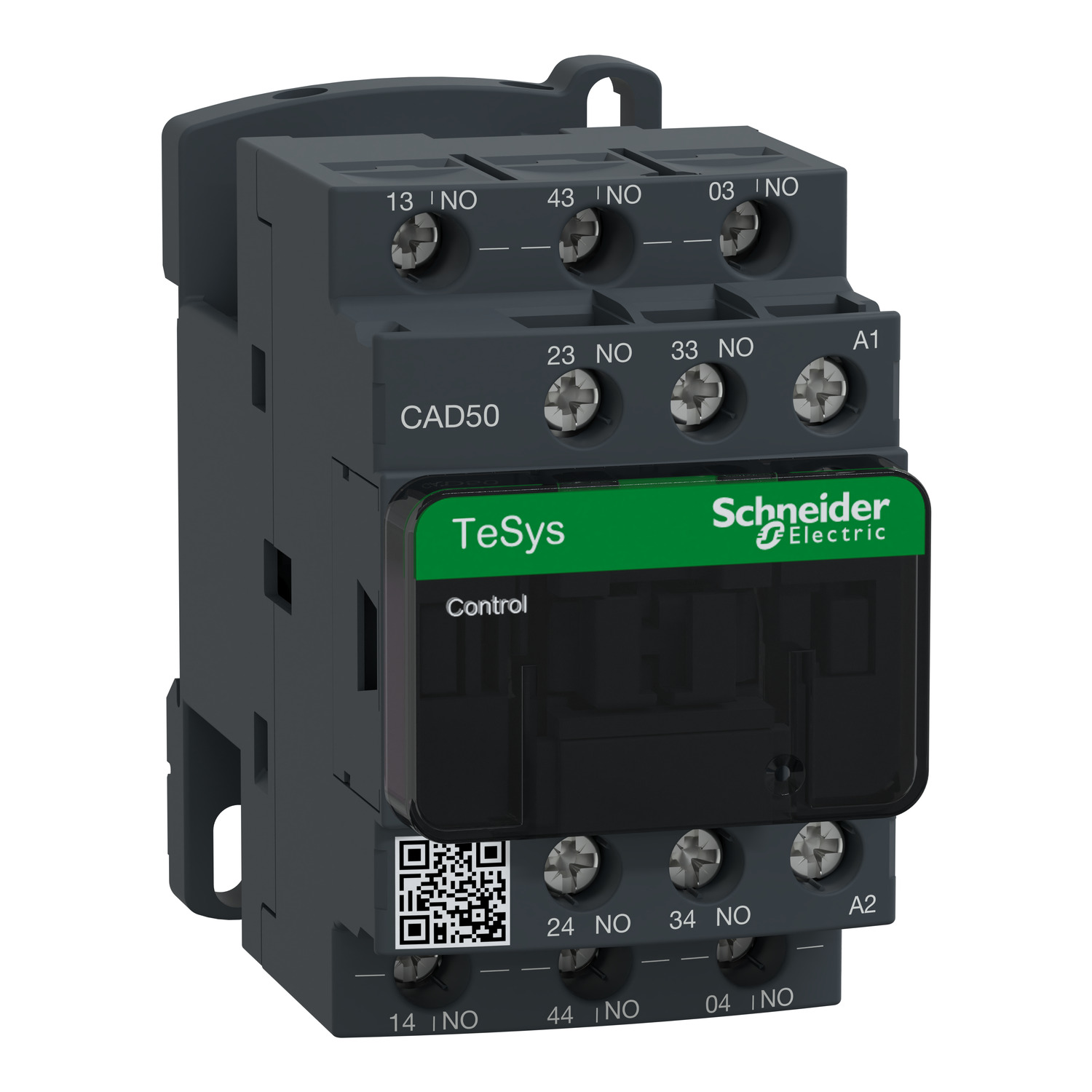

CAD
Max. nazivni tok (A)
10
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
5 NO
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
0 NC
Tip napetosti
AC
Krmilna napetost (V)
380 V
Mounting method
DIN-rail/screw
Rated control supply voltage Us at AC 50HZ (V)
380 Volt
Rated control supply voltage Us at AC 60HZ (V)
380 Volt
Voltage type for actuating
AC
Rated switch current (A)
0.005
Height (mm)
77
Width (mm)
45
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
5
Depth (mm)
93
Interface
No
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as change-over contact
0
With LED indication
No
Rated operation current Ie, 400 V (A)
10
Manual operation possible
No
Number of auxiliary contacts as normally closed contact, delayed switching
0
Number of auxiliary contacts as normally open contact, leading
0
Operating voltage at AC 50 Hz (V)
690 Volt
Operating voltage at AC 60 Hz (V)
690 Volt
Rated operation current (A)
10
Voltage type (operating voltage)
AC
Suitable for manual operation
No
