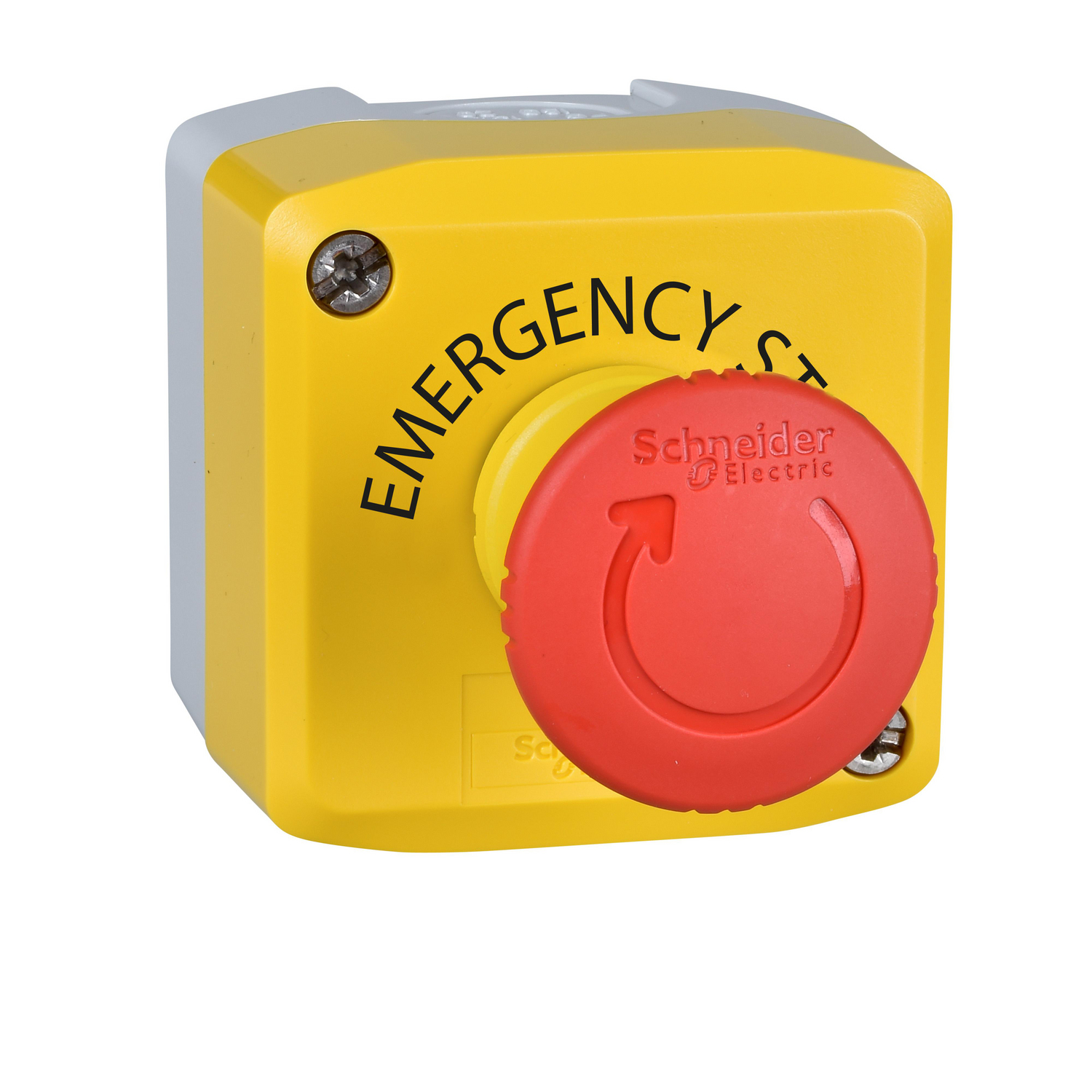

Tip
XALK
Kompatibilnost
XB5
Material
plastika
Premer (mm)
40 mm
Vrsta produkta
polna kontrolna postaja
Barva
rumena
Oznaka na glavi
ne
Tip upravljanja
potisk-zasuk
Št. izrezov
1
Izklop v sili
da
Degree of protection (IP)
Other
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
1
Mounting method
Surface mounting
Rated control supply voltage Us at AC 50HZ (V)
120…600 Volt
Rated control supply voltage Us at AC 60HZ (V)
120…600 Volt
Rated control supply voltage Us at DC (V)
125…600 Volt
Suitable for emergency stop
No
Number of indicator lights
0
Number of command positions
1
Degree of protection (NEMA)
4X, 13
Connection type auxiliary circuit
Screw connection
Material housing
Plastic
Diameter cap (mm)
40
Unlocking method
Turn-release
Hole diameter (mm)
22.5
With lighting
No
Colour housing
Yellow
Colour housing cover
Yellow
Number of selector switches
0
Number of push buttons
0
Number of mushroom-shaped push-buttons
1
Number of key switches
0
