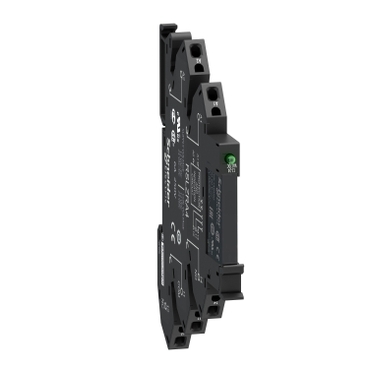

Tip
RSL
Tip napetosti
DC
Krmilna napetost (V)
24 V
Širina (mm)
5
Nazivni tok (A)
6
Št. kontaktov
1
Indikacija LED
ne
Vrsta releja
ozki interface rele
Dodatek - podnožje
RSLZVA1
Dodatek - oznaka
RSZL300
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Type of electric connection
Spring clamp connection
Rated control supply voltage Us at AC 50HZ (V)
24 Volt
Rated control supply voltage Us at AC 60HZ (V)
24 Volt
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 Volt
Height (mm)
78.6
Width (mm)
6.2
Depth (mm)
101
With LED indication
Yes
Drive, switching attitude
Mono stable
With forced-guided contacts
Yes
Nominal current (A)
6
Drive, polarization
Polarity free
Type of switch contact
Single contact
Complete with socket
Yes
With detachable clamps
Yes
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
Relay technology category according to IEC 61810-7
RT I
