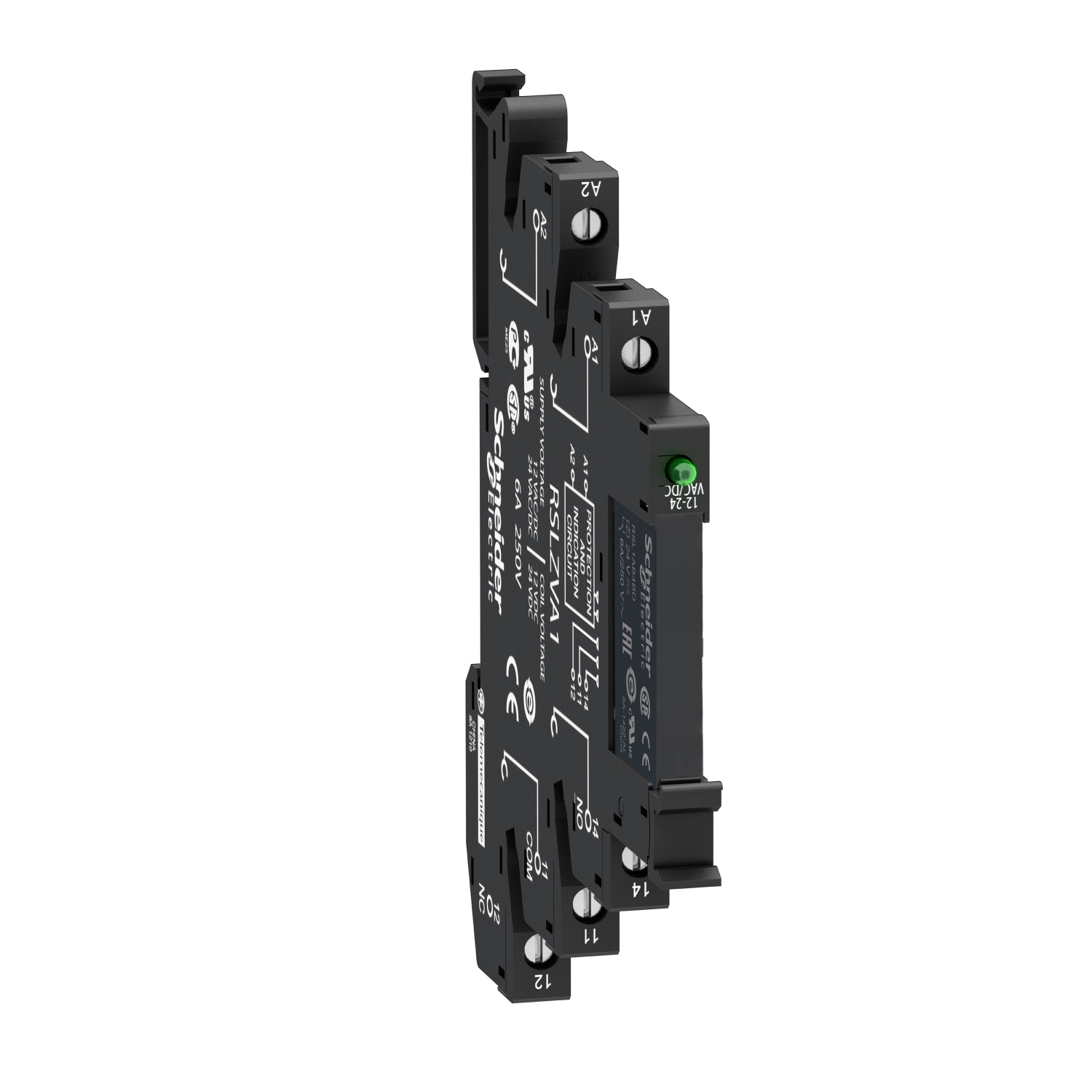

Tip
RSL
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24 Volt
Rated control supply voltage Us at AC 60HZ (V)
24 Volt
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24 Volt
Height (mm)
78.6
Width (mm)
6.2
Depth (mm)
95
With LED indication
Yes
Drive, switching attitude
Mono stable
With forced-guided contacts
Yes
Nominal current (A)
6
Drive, polarization
Polarity free
Type of switch contact
Single contact
Complete with socket
Yes
With detachable clamps
Yes
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
Relay technology category according to IEC 61810-7
RT I
