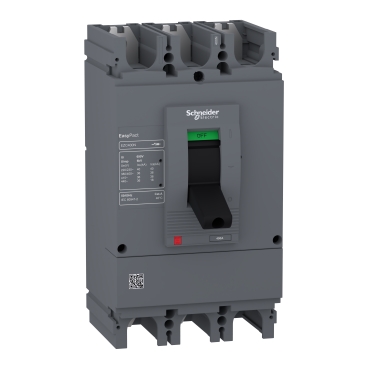

Tip
EZC
Max. nazivni tok (A)
400
Št. polov
3 P
Nazivni tok (A)
400
Pomožni kontakt
EZAUX10
Kratkostična zmogljivost (kA) pri 240 V
40 kA
Podaljšna ročica
LV432598
Tip zaščite
fiksna TMD
Degree of protection (IP)
IP20
Number of poles
3
Type of electrical connection of main circuit
Bolt connection
Number of auxiliary contacts as normally closed contact
5
Number of auxiliary contacts as normally open contact
5
Number of auxiliary contacts as change-over contact
5
Type of control element
Toggle
With integrated under voltage release
No
Device construction
Built-in device fixed built-in technique
Rated voltage (V)
440 Volt
Suitable for DIN rail (top hat rail) mounting
No
Motor drive integrated
Yes
Motor drive optional
Yes
Complete device with protection unit
Yes
With under voltage release
Yes
DIN rail (top hat rail) mounting optional
No
With switched-off indicator
No
Position of connection for main current circuit
Front side
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
36
Integrated earth fault protection
No
Power loss (Watt)
30
