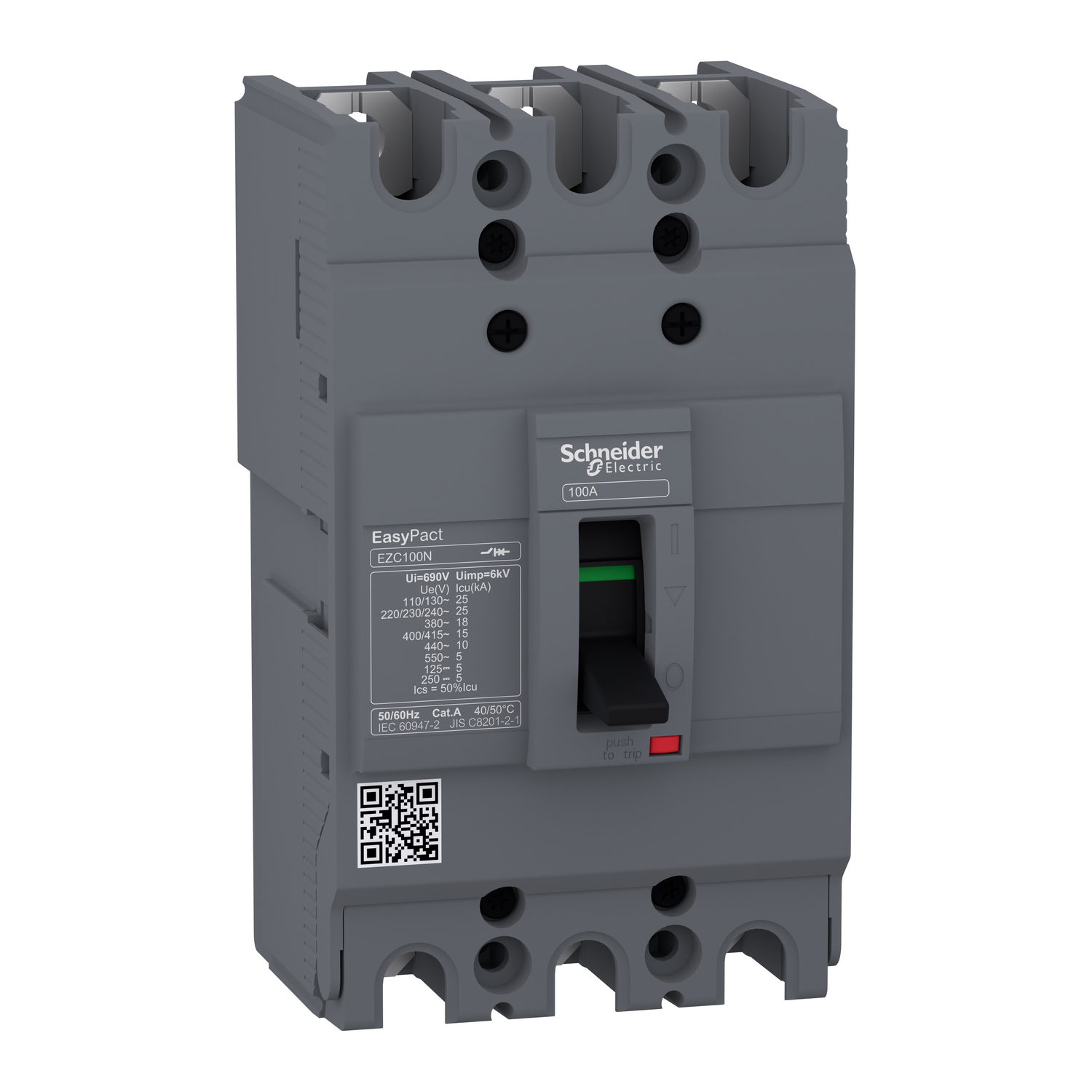

Tip
EZC
Max. nazivni tok (A)
100
Št. polov
3 P
Nazivni tok (A)
16
Pomožni kontakt
EZAUX10
Kratkostična zmogljivost (kA) pri 240 V
15 kA
Podaljšna ročica
EZAROTE
Tip zaščite
fiksna TMD
Degree of protection (IP)
IP20
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Overload release current setting (A)
0…16 Ampere
Number of auxiliary contacts as change-over contact
0
Type of control element
Toggle
With integrated under voltage release
No
Device construction
Built-in device fixed built-in technique
Rated voltage (V)
550 Volt
Suitable for DIN rail (top hat rail) mounting
No
Motor drive integrated
No
Motor drive optional
No
Complete device with protection unit
Yes
With under voltage release
Yes
DIN rail (top hat rail) mounting optional
No
With switched-off indicator
Yes
Position of connection for main current circuit
Front side
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
18
Integrated earth fault protection
No
Power loss (Watt)
3.15
