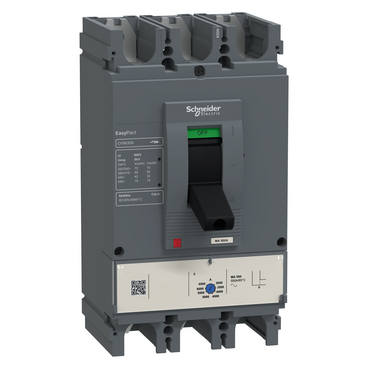

Tip
CVS
Max. nazivni tok (A)
400
Št. polov
3 P
Kratkostični tok (kA)
50
Nazivni tok (A)
320
Pomožni kontakt
29450
Kratkostična zmogljivost (kA) pri 240 V
50 kA
Podaljšna ročica
LV432598
Tip zaščite
motorska
Degree of protection (IP)
IP40
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Height (mm)
255
Width (mm)
140
Depth (mm)
110
Type of control element
Other
With integrated auxiliary switch
Yes
Switch off technique
Magnetic
Rated operating voltage (V)
220…440 Volt
Phase failure sensitive
No
With integrated under voltage release
Yes
Adjustment range undelayed short-circuit release (A)
1920…4160 Ampere
With thermal protection
No
Device construction
Built-in device fixed built-in technique
Power loss (Watt)
2.4
