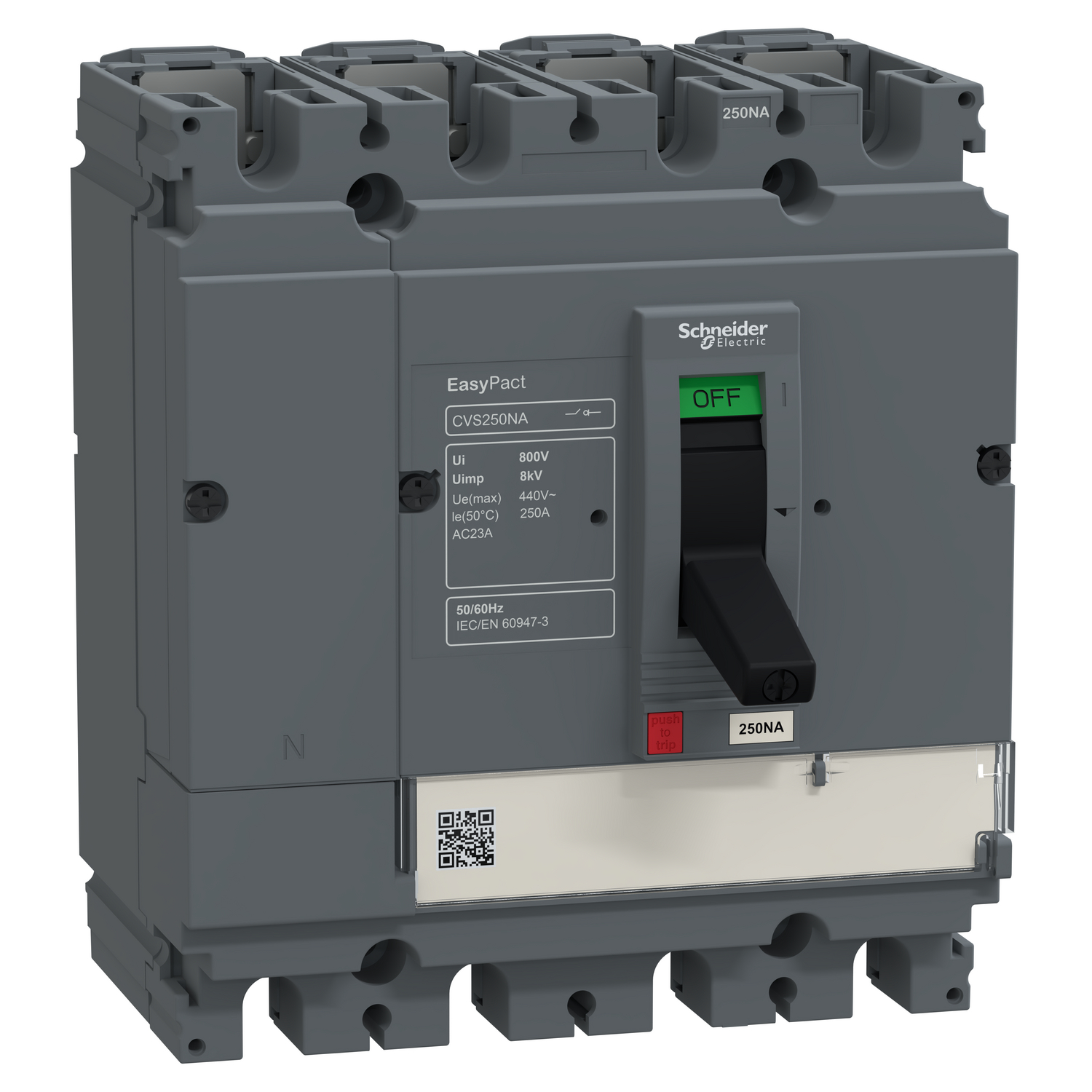

Tip
CVS
Max. nazivni tok (A)
250
Št. polov
4 P
Nazivni tok (A)
250
Pomožni kontakt
29450
Kratkostična zmogljivost (kA) pri 240 V
75 kA
Podaljšna ročica
LV429338
Tip zaščite
nastavljiva TMD
Number of poles
4
Type of electrical connection of main circuit
Screw connection
Height (mm)
161
Width (mm)
105
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
86
Number of auxiliary contacts as change-over contact
4
Type of control element
Toggle
Rated operating voltage (V)
440 Volt
Device construction
Built-in device fixed built-in technique
Degree of protection (IP), front side
IP40
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Suitable for ground mounting
No
Colour control element
Black
Version as emergency stop installation
No
Version as reversing switch
No
Suitable for front mounting centre
Yes
Max. rated operation voltage Ue AC (V)
440
Version as main switch
Yes
Rated short-time withstand current lcw (kA)
3.5
Voltage release optional
No
Interlockable
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Suitable for front mounting 4-hole
Yes
Motor drive integrated
No
Number of switches
1
Motor drive optional
No
Rated permanent current at AC-23, 400 V (A)
250
