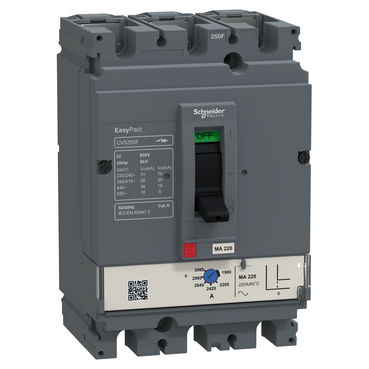

Tip
CVS
Max. nazivni tok (A)
250
Št. polov
3 P
Kratkostični tok (kA)
36
Nazivni tok (A)
220
Pomožni kontakt
29450
Kratkostična zmogljivost (kA) pri 240 V
36 kA
Podaljšna ročica
LV429338
Tip zaščite
motorska
Degree of protection (IP)
IP40
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Height (mm)
161
Width (mm)
105
Depth (mm)
86
Type of control element
Other
With integrated auxiliary switch
Yes
Switch off technique
Magnetic
Rated operating voltage (V)
220…440 Volt
Phase failure sensitive
No
With integrated under voltage release
Yes
Adjustment range undelayed short-circuit release (A)
1980…3080 Ampere
With thermal protection
No
Device construction
Built-in device fixed built-in technique
Power loss (Watt)
18.75
