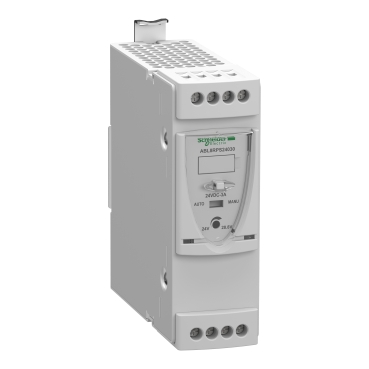

Tip
ABL8
Nazivni tok (A)
3
Vhodna napetost (V)
100-500 V
Tip vhodne napetosti
AC
Izhodna napetost (V)
24 V
Tip izhodne napetosti
DC
Degree of protection (IP)
IP20
Type of electric connection
Screw connection
Voltage type of supply voltage
AC/DC
Height (mm)
143
Width (mm)
45
Depth (mm)
12.5
Rail mounting possible
Yes
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Suitable for safety functions
Yes
Modular version
No
Direct mounting possible
Yes
Stabilized
Yes
Short-circuit-proof
Yes
Power output (W)
72
Nominal value output current 1 (A)
3
Nominal value output voltage 1 (V)
24
Max. output current 1 (A)
3
Output voltage stabilized
Yes
Wall mounting possible
No
1st secondary output voltage (V)
24…28.8 Volt
Secondary voltage adjustable
Yes
Rated supply voltage at AC 50 Hz (V)
100…500 Volt
Rated supply voltage at AC 60 Hz (V)
100…500 Volt
