Št. analognih vhodov
2

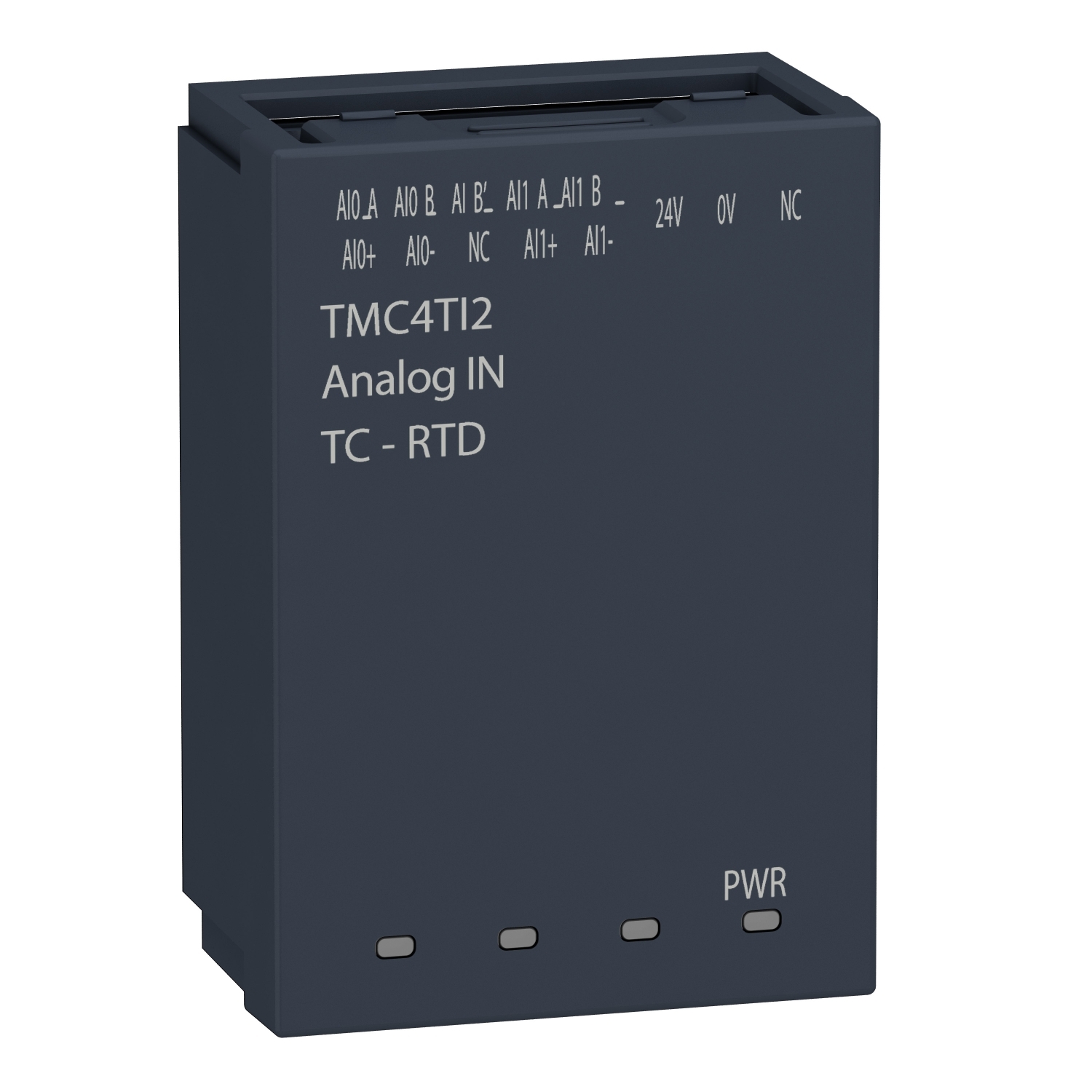

Vrsta produkta
kartuša I/O
Vrsta vhoda
termočlen / Ni / Pt100 / Pt1000
Type of electric connection
Screw connection
Height (mm)
50
Width (mm)
34
Depth (mm)
21
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Explosion safety category for dust
None
Explosion safety category for gas
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Suitable for safety functions
No
Number of analogue outputs
0
Number of analogue inputs
2
Category according to EN 954-1
1
Power consumption (W)
11
Input, thermocouple
Yes
Input signal, configurable
No
Analogue inputs configurable
No
Analogue outputs configurable
No
Input, resistor
Yes
Input, resistance thermometer
No
Input, current
Yes
Input, voltage
Yes
Output, voltage
No
Output signal configurable
No
Output, current
No
Resolution of the analogue outputs (Bit)
12
Resolution of the analogue inputs (Bit)
14
