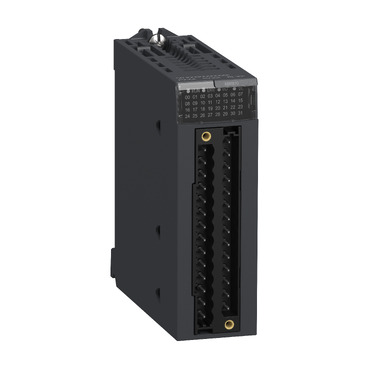

Sestavni del
I/O modul
Vrsta vhoda
analogni
Tip modula
analogni vhodni modul
Število I/O
8
Type of electric connection
Plug-in connection
Height (mm)
100
Width (mm)
32
Depth (mm)
150
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Explosion safety category for dust
Other
Explosion safety category for gas
Other
Appendant operation agent (Ex ia)
Yes
Appendant operation agent (Ex ib)
Yes
Suitable for safety functions
Yes
Number of analogue outputs
0
Number of analogue inputs
8
Category according to EN 954-1
1
Power consumption (W)
1.5
Input, thermocouple
No
Input signal, configurable
Yes
Analogue inputs configurable
Yes
Analogue outputs configurable
No
Input, resistor
No
Input, resistance thermometer
No
Input, current
Yes
Input, voltage
Yes
Output, voltage
No
Output signal configurable
No
Output, current
No
Resolution of the analogue inputs (Bit)
16
