Tip

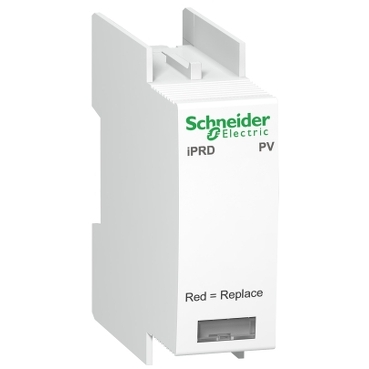

iPRD
Vrsta produkta
kartuša
Degree of protection (IP)
IP20
Mounting method
On basic element
System configuration TN-C
No
System configuration DC
Yes
Nominal discharge surge current (8/20) (kA)
15
System configuration TN
No
System configuration IT
No
Voltage protection level (kV)
1.4
System configuration TT
No
System configuration TN-S
No
Signalling at the device
Optical
Max. discharge surge current (8/20) (kA)
40
System configuration TN-C-S
No
With remote signalling contact
No
System configuration other
No
Construction size
1 modular spacing
Integrated backup fuse
No
Category type 2
Yes
Max. continuous voltage DC (V)
350
Nominal voltage DC (V)
600
Max. PV-voltage (V)
800
Integrated short-circuit protection
No
Leakage-current free
No
