Tip

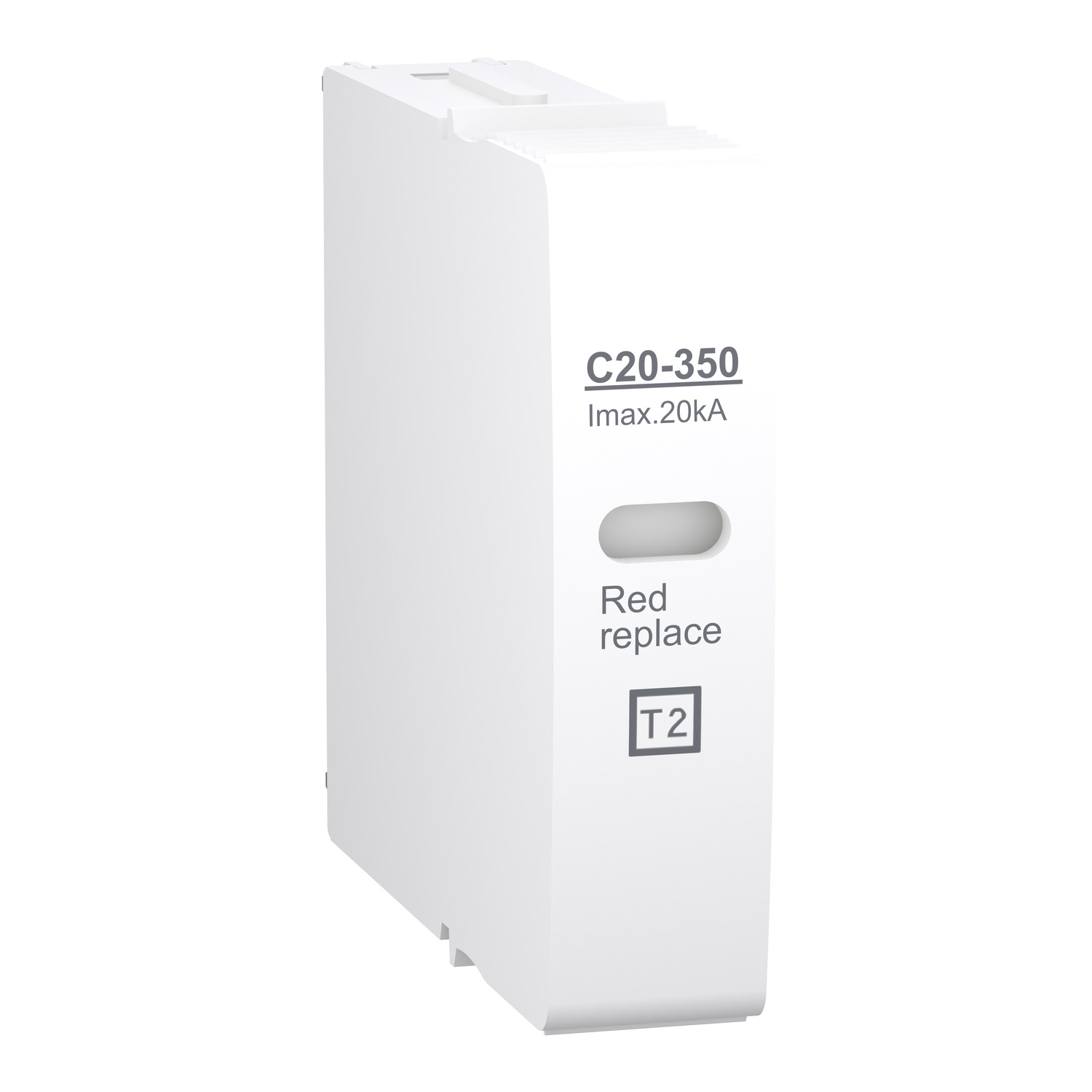

iQuick PRD
Vrsta produkta
kartuša
Degree of protection (IP)
IP20
Mounting method
On basic element
System configuration TN-C
No
System configuration DC
No
Nominal discharge surge current (8/20) (kA)
15
System configuration TN
Yes
System configuration IT
No
Voltage protection level (kV)
1.4
System configuration TT
Yes
System configuration TN-S
No
Signalling at the device
Optical
Nominal voltage AC (V)
230
Max. discharge surge current (8/20) (kA)
20
System configuration TN-C-S
No
With remote signalling contact
No
System configuration other
No
Construction size
Other
Integrated backup fuse
No
Category type 2
Yes
Max. continuous voltage AC (V)
350
Integrated short-circuit protection
No
Leakage-current free
No
