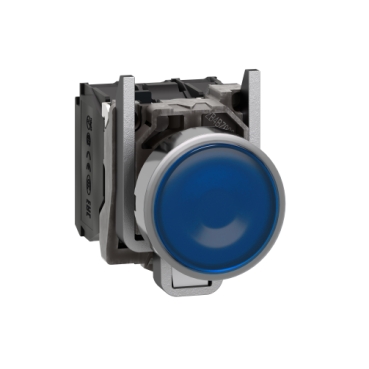

Tip
XB4
Tip napetosti
AC/DC
Material
kromirana kovina
Premer (mm)
22 mm
Napetost (V)
24 V
Vrsta produkta
tipka
Oznaka na glavi
ne
Barva glave
modra
ATEX
ne
Št. kontaktov NO
1 NO
Št. kontaktov NC
1 NC
Svetleča z LED
ne
Tip upravljanja
povratna vzmet
Degree of protection (IP)
IP66
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
1
Type of electric connection
Screw connection
Number of command positions
1
Degree of protection (NEMA)
4X
Spring-return
Yes
Switching function latching
No
Type of button
Flat
Construction type lens
Round
Colour button
Blue
With front ring
Yes
Suitable for illumination
Yes
Hole diameter (mm)
22.5
Transparent
Yes
Colour front ring
Chrome
Material front ring
Metal
Supply voltage lamp (V)
24
