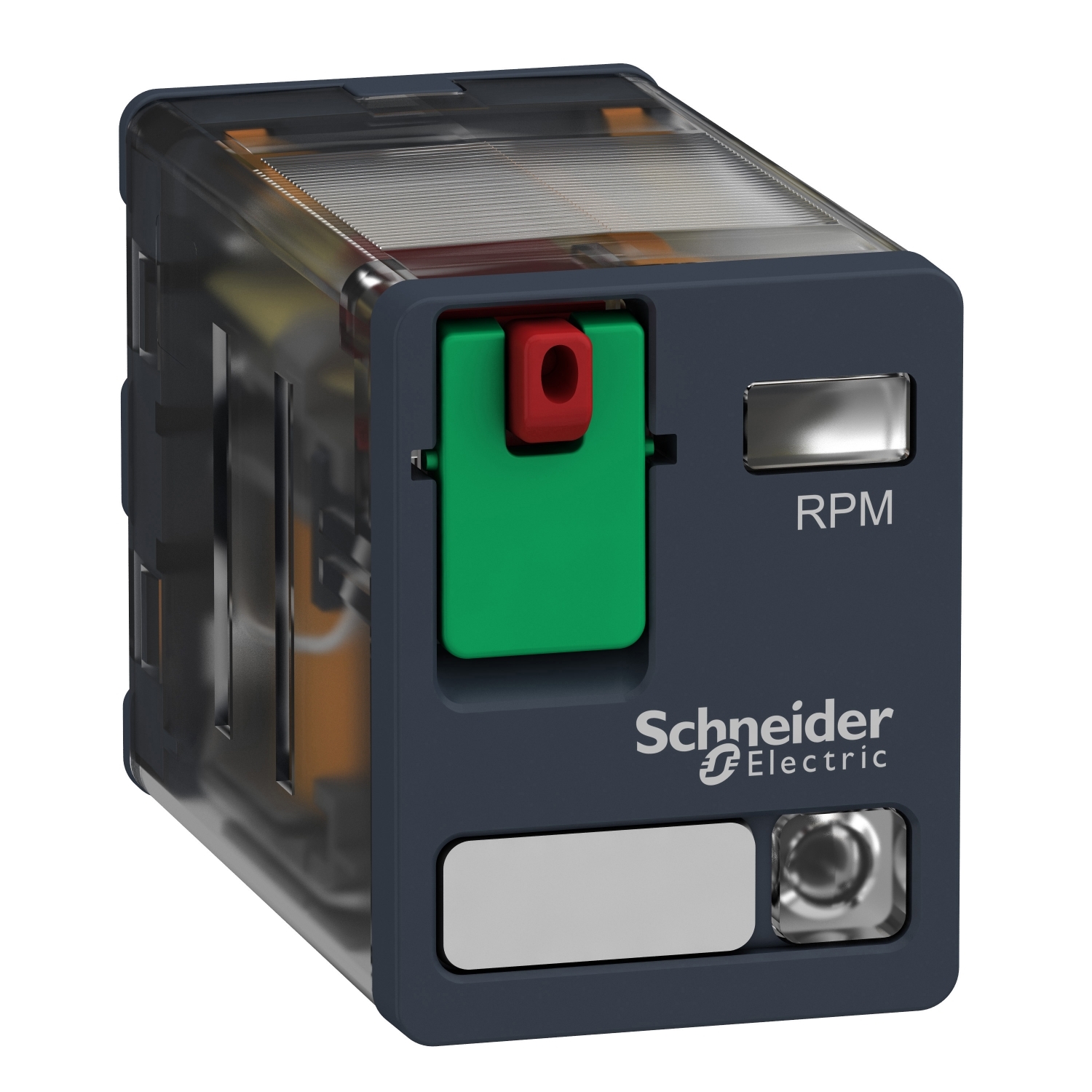

Tip
RPM
Tip napetosti
AC
Krmilna napetost (V)
120 V
Širina (mm)
21
Nazivni tok (A)
15
Št. kontaktov
2
Indikacija LED
da
Vrsta releja
močnostni vtični rele
Dodatek - podnožje
RPZF2
Dodatek - oznaka
RXZL520
Dodatek - vzmet
RPZR235
Dodatek - dioda
RXM040W
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
0
Type of electric connection
Plug-in connection
Rated control supply voltage Us at AC 50HZ (V)
120 Volt
Rated control supply voltage Us at AC 60HZ (V)
120 Volt
Voltage type for actuating
AC
Height (mm)
27
Width (mm)
21
Depth (mm)
53
With LED indication
Yes
Drive, switching attitude
Mono stable
With forced-guided contacts
Yes
Nominal current (A)
15
Drive, polarization
Polarity free
Type of switch contact
Double contact
Complete with socket
No
With detachable clamps
Yes
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
Relay technology category according to IEC 61810-7
RT I
