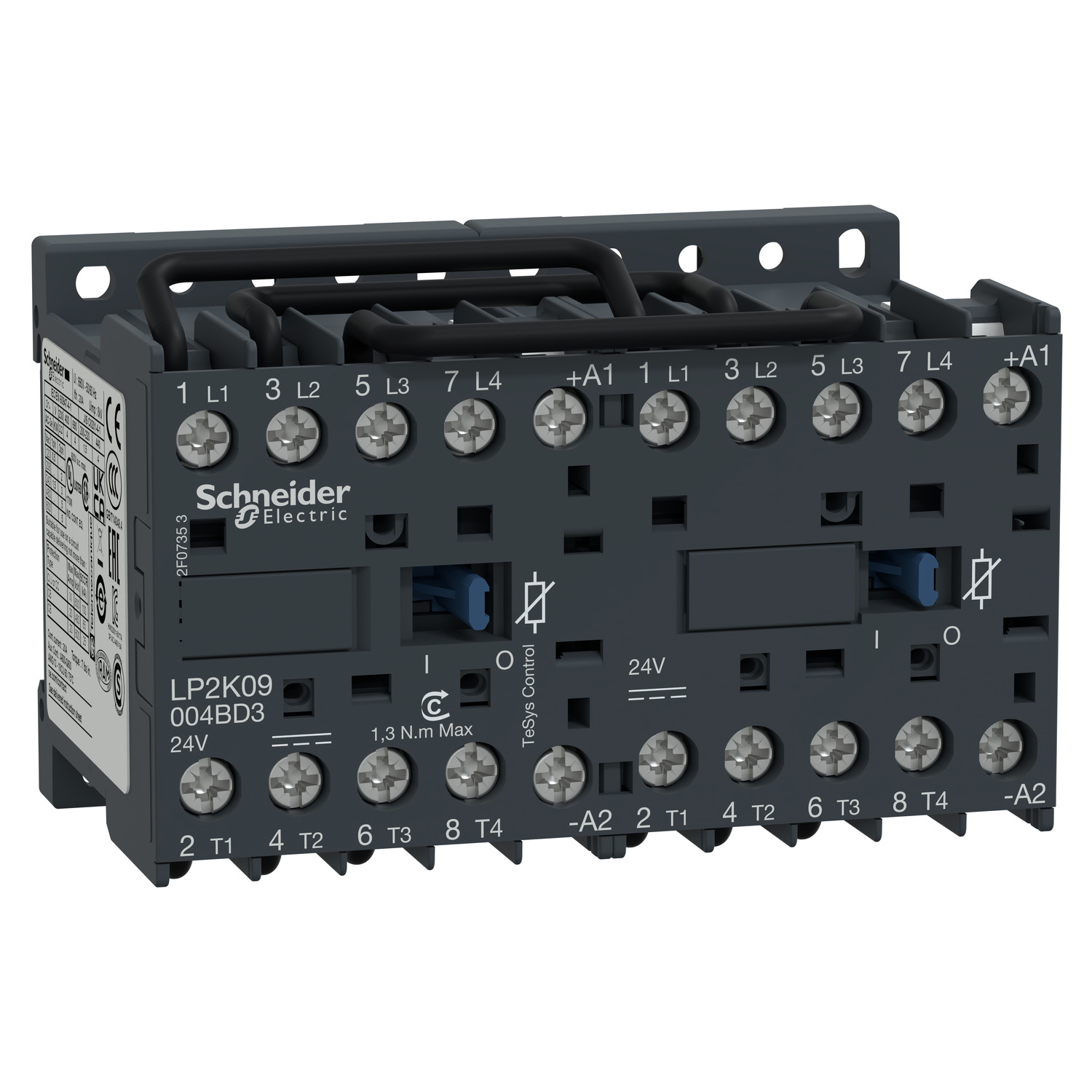

Tip
LP2K
Max. nazivni tok (A)
20
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
0
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
0
Št. polov
4 P
Tip napetosti
DC
Krmilna napetost (V)
24 V
Tip bremena
AC-1
Vrsta kontaktorja
miniaturni
Degree of protection (IP)
IP20
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 Volt
Function
Changeover contactor
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Height (mm)
58
Width (mm)
90
Depth (mm)
57
Rail mounting possible
No
Rated operation current Ie at AC-3, 400 V (A)
9
Degree of protection (NEMA)
Other
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
4
Rated operation current Ie at AC-1, 400 V (A)
20
Operating voltage at DC (V)
440 Volt
Voltage type (operating voltage)
DC
