Tip

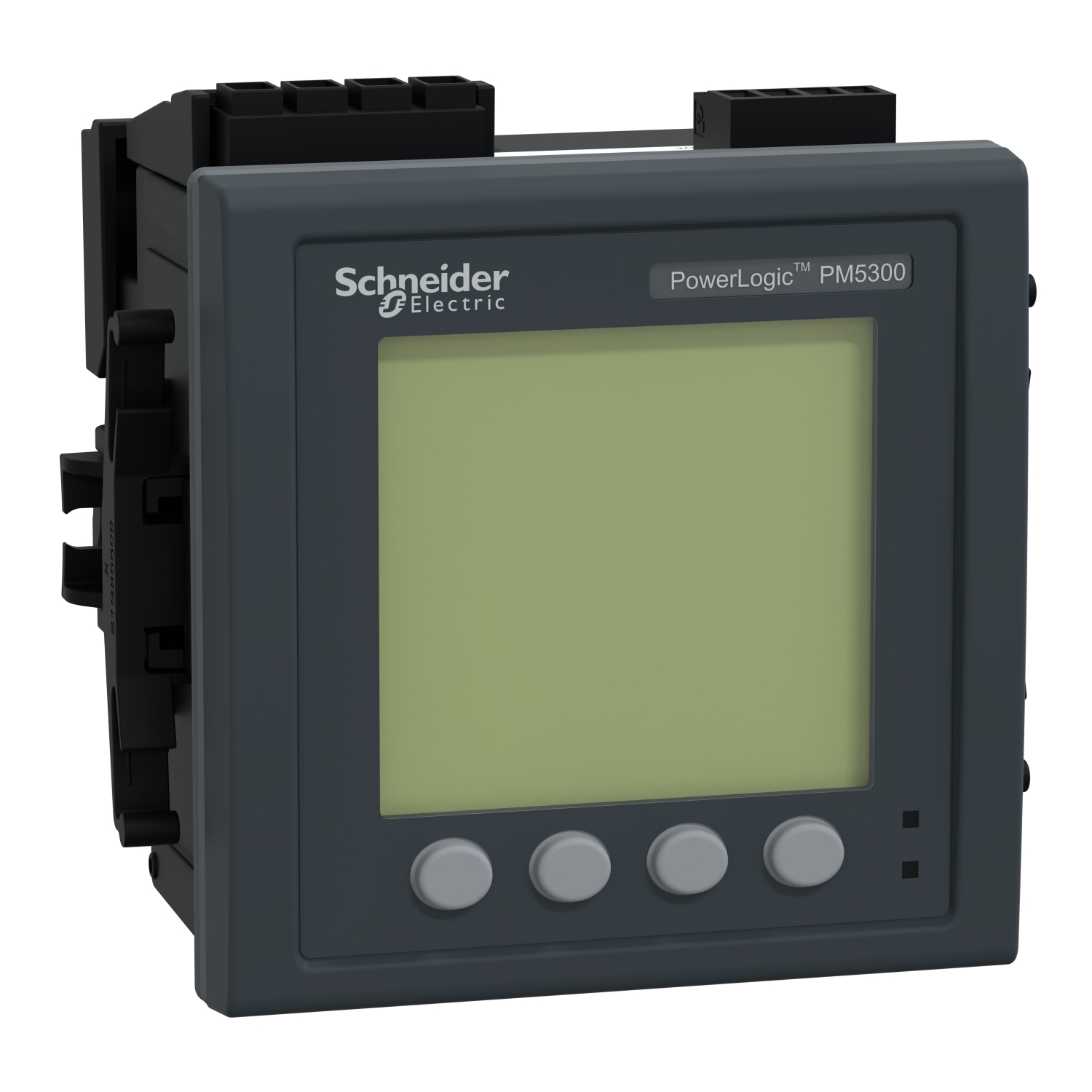

PM5000
Montaža
vrata
Komunikacija
Modbus
Vrsta produkta
merilnik
Merjenje (A)
TT
Zahtevnost merjenja
napredno
Frequency (Hz)
50…60 Hz
Width in number of modular spacings
0
Degree of protection (IP)
IP30
Connectable conductor cross section solid-core (mm²)
0.82…3.31 Square millimetre
Model
Measurement transformer
Mounting method
Front mounting
Voltage type of supply voltage
AC/DC
Height (mm)
101.2
Width (mm)
112
Depth (mm)
89
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIBUS
No
Supporting protocol for MODBUS
Yes
Supporting protocol for other bus systems
Yes
Degree of protection (NEMA)
1
Supply voltage DC (V)
125…250 Volt
Suitable for
Purchase
Degree of protection (IP), front side
Other
Number of digital outputs
4
Number of digital inputs
2
Number of analogue outputs
0
Number of analogue inputs
0
Supply voltage AC 50 Hz (V)
100…415 Volt
Supply voltage AC 60 Hz (V)
100…415 Volt
Type of interface
RS-485
Max. current (Imax) (A)
20
Calibrated
No
Pulse output
Optical
Escapement mechanism
No
Energy type
Effective power and blind power
Number of positions total (counter)
2
Tariff type
Multi-tariff
Type of indication
Digital
Pole type
Three conductor/four conductor
Measuring type load profile
Yes
EEC40 signature
No
With lock code
No
Nominal current (In) (A)
5
Type of meter
Electronic
Nominal voltage (Un) N-L (V)
20…400 V
Pulse type
S0
Pulse rate (Imp/kWh (kvarh))
1…9999999 Imp/kWh (kvarh)
Nominal voltage (Un) L-L (V)
35…690 V
Tariff control
External
Display
LCD
Power factor
Yes
Wth communication interface M-Bus
No
Apparent power
Yes
Remote display
No
Number of voltage measurement inputs
4
With communication interface RS-485
Yes
Step angle (cos phi)
Yes
Suitable for RJ plug
No
Measuring range for frequency (Hertz)
47…63 Hertz
With communication interface KNX
No
With firmware signature
No
With audit logging (audit log)
No
With Role Based Access Control (RBAC)
No
With logging of security events (security event log)
Yes
Web server with HTTPS transfer protocol
No
Frequency meter
Yes
With rotational speed meter
No
Blind power meter
Yes
Ampere meter
Yes
Supporting protocol for OPC UA PubSub
No
Pulse counter
No
Effective power measurement device
Yes
Voltmeter
Yes
Number of Ethernet-connections
0
Supporting protocol for IEC 61850 Ethernet
No
Number of current measurement inputs
6
Sampling frequency (Hertz)
6400
Harmonics measurement
Yes
Measured value memory
Yes
Accuracy class reactive energy according to IEC 62053-23
Other
Accuracy class active energy according to IEC 62053-22
0.5S
Display resolution (vertical) (Pixels)
128
Display resolution (horizontal) (Pixels)
128
