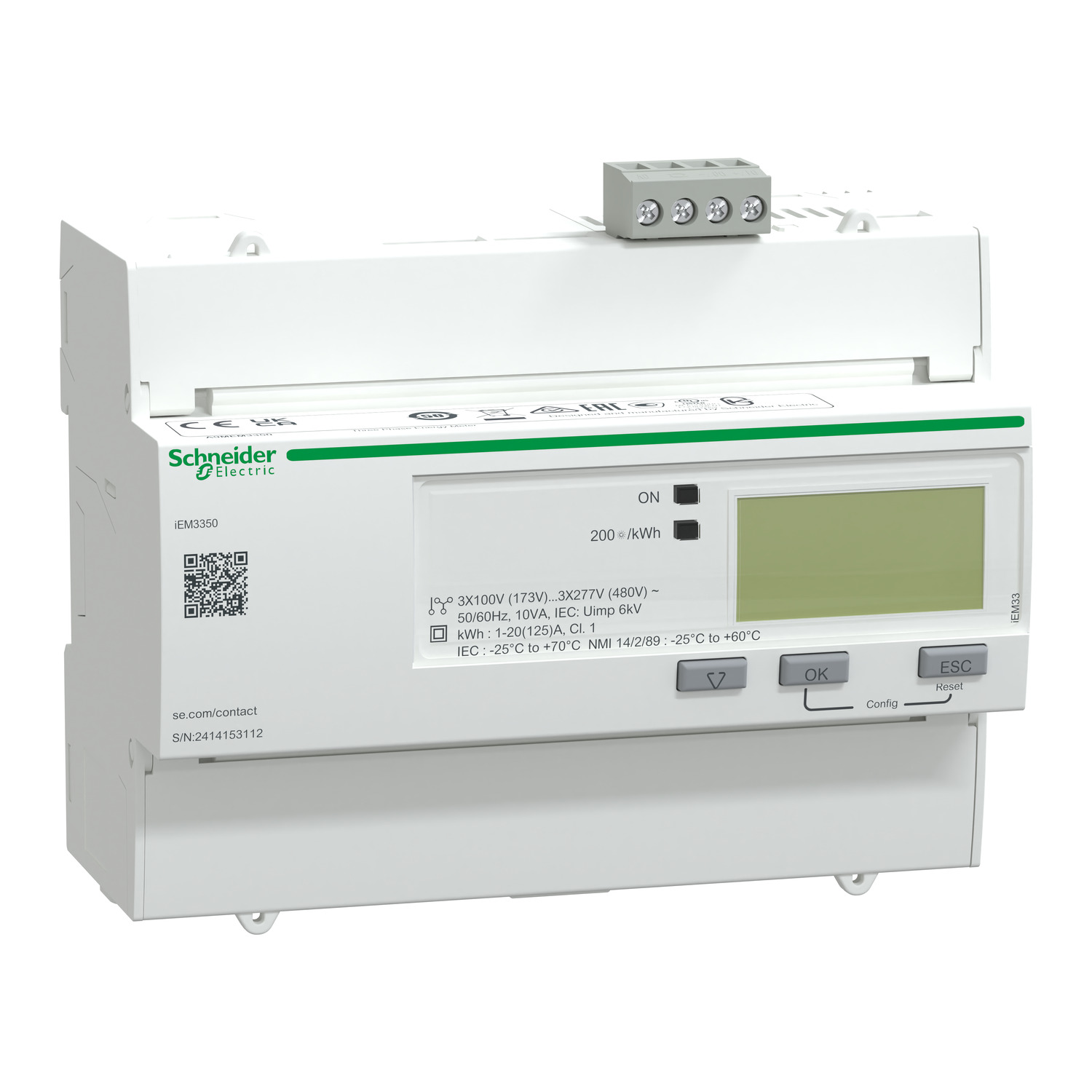

Tip
iEM3000
Montaža
DIN letev
Komunikacija
Modbus
Vrsta produkta
merilnik
Merjenje (A)
125 A
Zahtevnost merjenja
osnovno
Frequency (Hz)
50…60 Hertz
Width in number of modular spacings
7
Degree of protection (IP)
IP20
Model
Direct measurement
Mounting method
DRA (DIN-rail adapter)
Height (mm)
103.2
Width (mm)
126
Depth (mm)
69.3
Degree of protection (NEMA)
1
Suitable for
Purchase
Type of interface
Modbus
Max. current (Imax) (A)
125
Calibrated
No
Approval
Domestic
Pulse output
Optical
Escapement mechanism
No
Energy type
Effective power
Accuracy class
B
Number of positions total (counter)
9
Tariff type
One-tariff
Type of indication
Digital
Pole type
Three conductor/four conductor
Measuring type load profile
No
EEC40 signature
No
With lock code
No
Nominal current (In) (A)
125
Type of meter
Electronic
Nominal voltage (Un) N-L (V)
100…277 Volt
Pulse rate (Imp/kWh (kvarh))
0…500 Pulse constant
Nominal voltage (Un) L-L (V)
173…480 Volt
