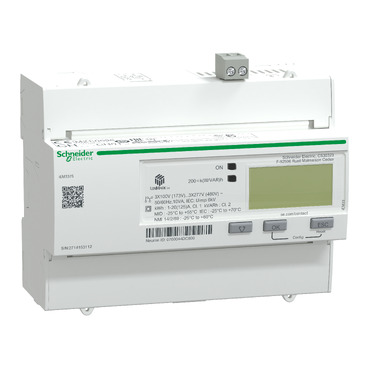

Tip
iEM3000
Montaža
DIN letev
Komunikacija
LON
Vrsta produkta
merilnik
Merjenje (A)
125 A
Zahtevnost merjenja
osnovno
Frequency (Hz)
50…60 Hertz
Width in number of modular spacings
7
Degree of protection (IP)
IP20
Model
Direct measurement
Mounting method
DRA (DIN-rail adapter)
Height (mm)
103.2
Width (mm)
126
Depth (mm)
69.3
Degree of protection (NEMA)
1
Suitable for
Purchase/supply
Type of interface
LON bus
Max. current (Imax) (A)
125
Calibrated
No
Approval
Measuring Instruments Directive
Pulse output
Optical
Escapement mechanism
No
Energy type
Effective power and blind power
Accuracy class
B
Number of positions total (counter)
9
Tariff type
Multi-tariff
Type of indication
Digital
Pole type
Three conductor/four conductor
Measuring type load profile
No
EEC40 signature
No
With lock code
No
Nominal current (In) (A)
125
Type of meter
Electronic
Nominal voltage (Un) N-L (V)
100…277 Volt
Pulse rate (Imp/kWh (kvarh))
0…500 Pulse constant
Nominal voltage (Un) L-L (V)
173…480 Volt
Tariff control
Internal/external
