Tok
200
Št. polov
3 P / 3 P+N

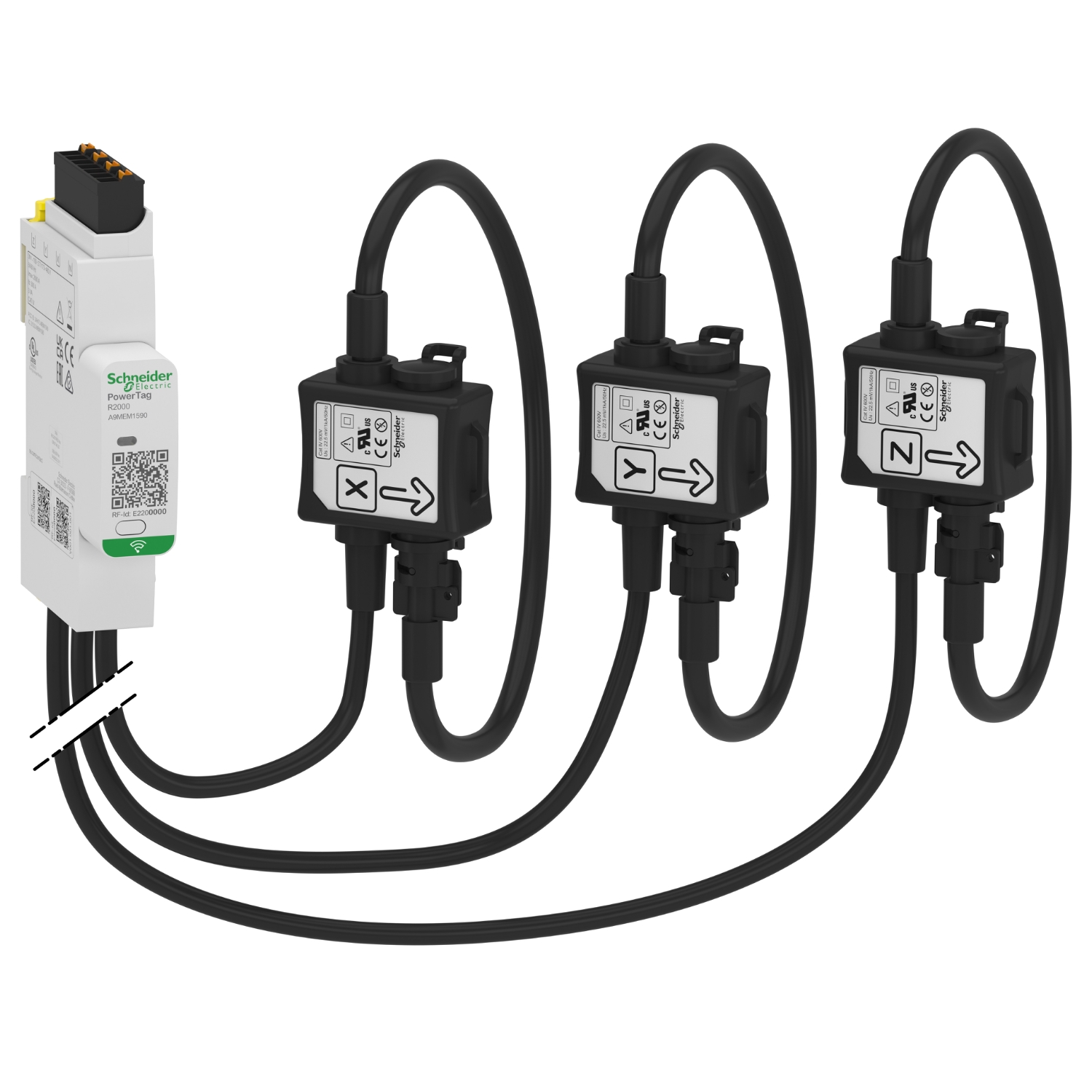

Vrsta produkta
brezžični merilnik energije PowerTag
Frequency (Hz)
50…60 Hertz
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Model
Measurement transformer
Height (mm)
105
Width (mm)
18
Depth (mm)
67.5
Degree of protection (NEMA)
1
Suitable for
Purchase
Power consumption (W)
3
Type of interface
Other
Max. current (Imax) (A)
200
Calibrated
Yes
Approval
Domestic
Pulse output
None
Escapement mechanism
No
Energy type
Effective power and blind power
Accuracy class
B
Tariff type
One-tariff
Type of indication
None
Pole type
Four conductor
Measuring type load profile
No
EEC40 signature
No
With lock code
No
Nominal current (In) (A)
200
Type of meter
Electronic
Nominal voltage (Un) N-L (V)
100…277 Volt
Nominal voltage (Un) L-L (V)
173…480 Volt
