Tip

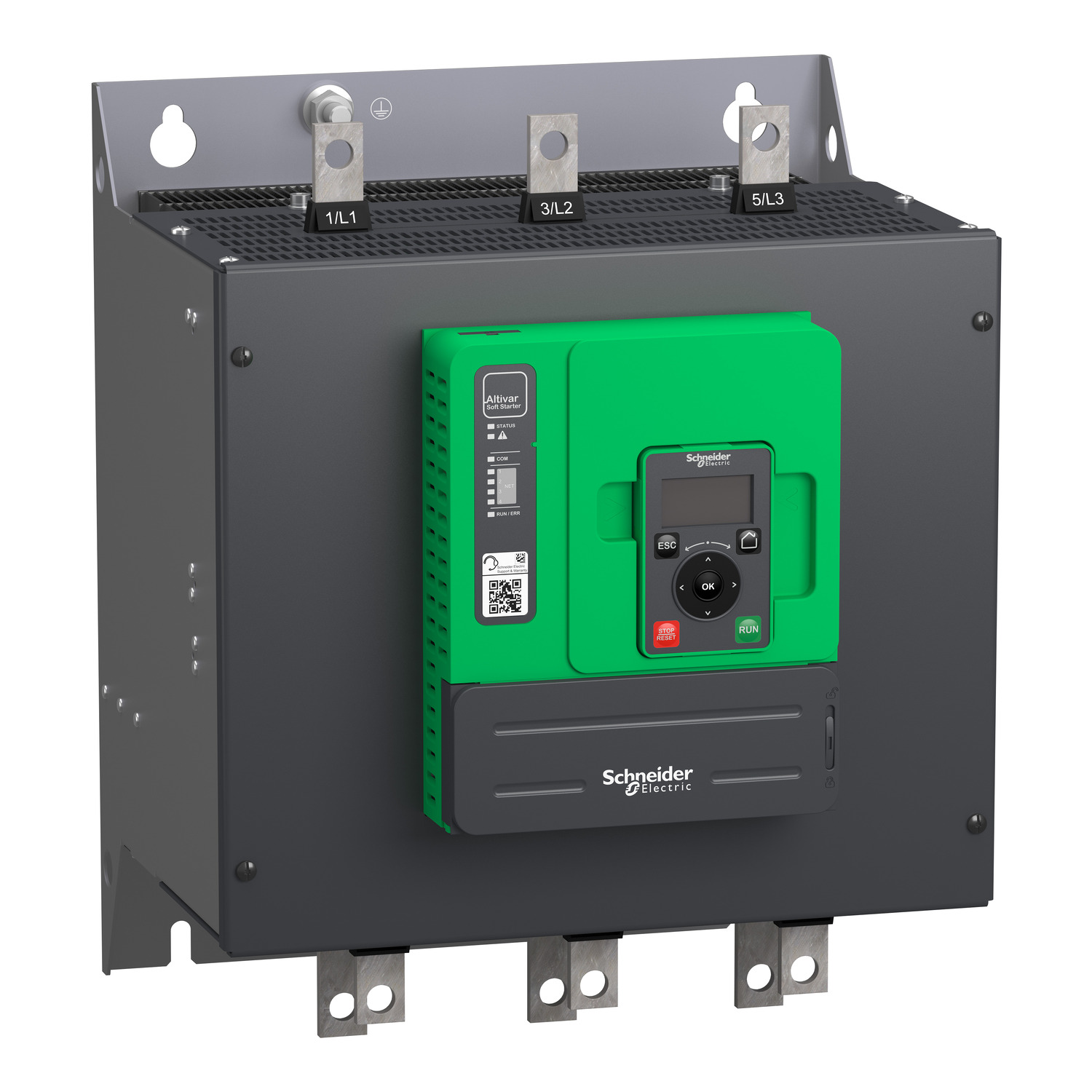

ATS480
Max. nazivni tok (A)
250
Krmilna napetost (V)
110-230 V
Število faz
3
Max. nazivna moč pri 400 V AC (AC-3)
132
Napetost obratovanja (AC)
208-690 V
Tip krmilne napetosti
AC
Degree of protection (IP)
IP00
Rated control supply voltage Us at AC 50HZ (V)
208…690 Volt
Rated control supply voltage Us at AC 60HZ (V)
208…690 Volt
Voltage type for actuating
AC
Function
Single direction
Release class
Other
Rated operating voltage Ue (V)
208…690 Volt
With display
No
Rated operation current Ie at 40 °C Tu (A)
250
Internal bypass
No
Torque control
Yes
Rated power three-phase motor, inline, at 230 V (kW)
7.5
Rated power three-phase motor, inline, at 400 V (kW)
132
Integrated motor overload protection
Yes
Rated surrounding temperature without derating (°C)
40
Rated power three-phase motor, inside delta, at 230 V (kW)
132
Rated power three-phase motor, inside delta, at 400 V (kW)
220
