Tip

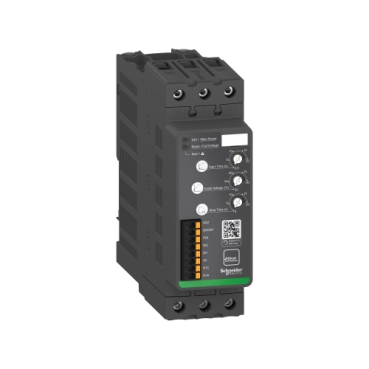

ATS130
Max. nazivni tok (A)
45
Krmilna napetost (V)
24 V
Število faz
3
Max. nazivna moč pri 400 V AC (AC-3)
22
Napetost obratovanja (AC)
200-480 V
Tip krmilne napetosti
DC
Degree of protection (IP)
IP20
Rated control supply voltage Us at AC 50HZ (V)
200…480 Volt
Rated control supply voltage Us at AC 60HZ (V)
200…480 Volt
Voltage type for actuating
AC
Rated control supply voltage Us at DC (V)
24 Volt
Function
Single direction
Release class
CLASS 10
Rated operating voltage Ue (V)
200…480 Volt
With display
No
Rated operation current Ie at 40 °C Tu (A)
45
Internal bypass
Yes
Torque control
No
Rated power three-phase motor, inline, at 230 V (kW)
11
Rated power three-phase motor, inline, at 400 V (kW)
2.2
Integrated motor overload protection
No
Rated surrounding temperature without derating (°C)
40
