Max. nazivni tok (A)
2.5
Max. nazivna moč pri 400 V AC (kW)
5.5
Nazivni tok (A)
25
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Height (mm)
74
Width (mm)
60
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Conditioned rated short-circuit current Iq (kA)
10
Number of auxiliary contacts as change-over contact
0

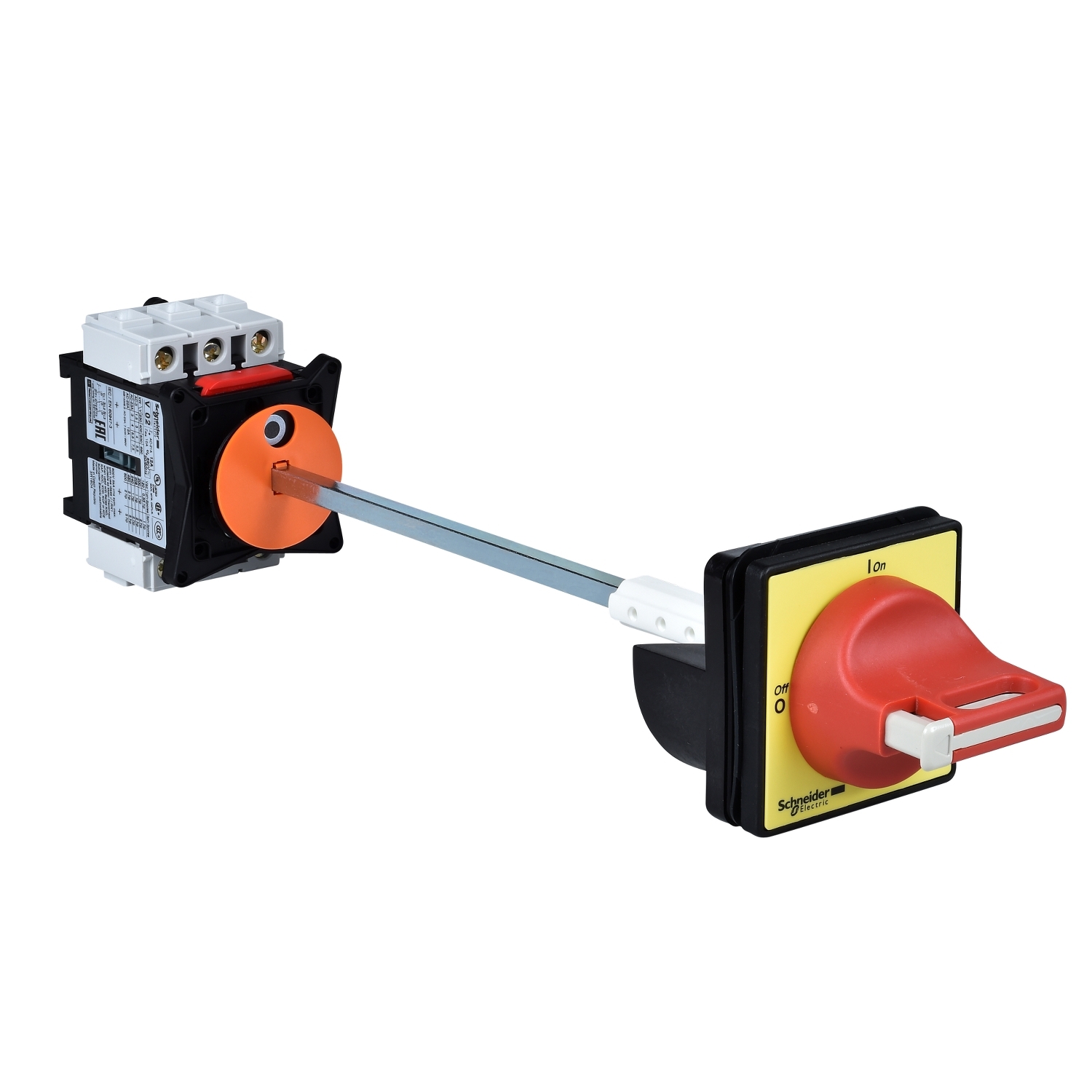

Type of control element
Door coupling rotary drive
Rated operating voltage (V)
690 Volt
Device construction
Built-in device fixed built-in technique
Degree of protection (IP), front side
IP65
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Suitable for ground mounting
No
Colour control element
Red
Version as emergency stop installation
Yes
Version as reversing switch
No
Suitable for front mounting centre
No
Max. rated operation voltage Ue AC (V)
690
Version as main switch
Yes
Rated short-time withstand current lcw (kA)
0.3
Voltage release optional
No
Interlockable
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Rated operation power at AC-23, 400 V (kW)
75
Suitable for front mounting 4-hole
Yes
Motor drive integrated
No
Number of switches
1
Motor drive optional
No
Rated permanent current at AC-23, 400 V (A)
14.5
Rated permanent current at AC-21, 400 V (A)
25
With pre-assembled cabling
No
