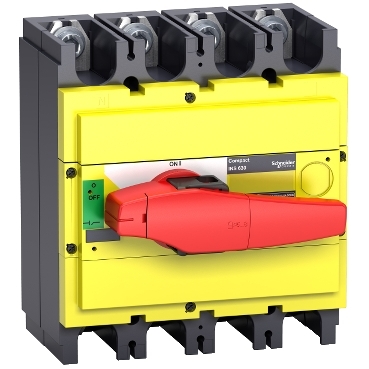

Tip
INS
Max. nazivni tok (A)
400
Št. polov
4 P
Nazivni tok (A)
400
Pomožni kontakt
29450
Barva ročice
rdeča
Ročica
31053
Number of poles
4
Type of electrical connection of main circuit
Screw connection
Height (mm)
205
Width (mm)
185
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
130
Number of auxiliary contacts as change-over contact
4
Type of control element
Long turning handle
Rated operating voltage (V)
690 Volt
Device construction
Built-in device fixed built-in technique
Degree of protection (IP), front side
IP40
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Suitable for ground mounting
Yes
Colour control element
Red
Version as emergency stop installation
Yes
Version as reversing switch
No
Suitable for front mounting centre
Yes
Max. rated operation voltage Ue AC (V)
690
Version as main switch
Yes
Rated short-time withstand current lcw (kA)
20
Voltage release optional
No
Interlockable
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated operation power at AC-23, 400 V (kW)
200
Suitable for front mounting 4-hole
Yes
Motor drive integrated
No
Number of switches
1
Motor drive optional
No
Rated permanent current at AC-23, 400 V (A)
400
With pre-assembled cabling
No
