Tip

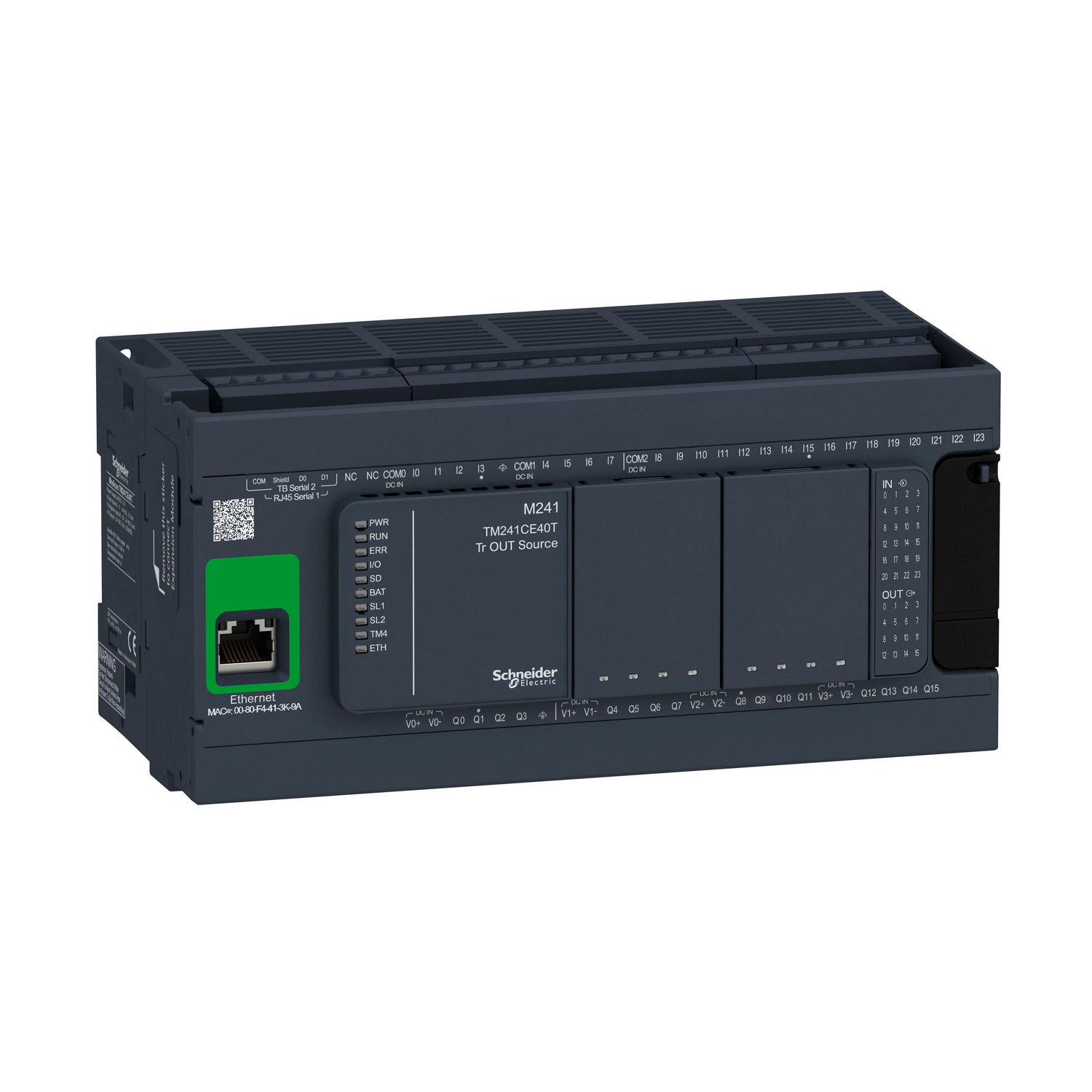

M241
Tip napetosti
DC
Napetost (V)
24 V
Komunikacija
Modbus RS485 + Modbus TCP/IP
Št. digitalnih vhodov
24
Št. digitalnih izhodov
16 Tr
Št. analognih vhodov
2
Vrsta digitalnega izhoda
tranzistorski
Vrsta analognega vhoda
0-10 V
Model
Compact
Voltage type of supply voltage
DC
Supporting protocol for SERCOS
No
Height (mm)
90
Supporting protocol for INTERBUS-Safety
No
Width (mm)
190
Supporting protocol for AS-Interface Safety at Work
No
Depth (mm)
95
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Rail mounting possible
Yes
Supporting protocol for DeviceNet
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for LON
No
Supporting protocol for other bus systems
No
Supporting protocol for SUCONET
No
SIL according to IEC 61508
None
System accessory
No
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
No
Explosion safety category for dust
None
Radio standard GSM
No
Radio standard UMTS
No
Explosion safety category for gas
None
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Appendant operation agent (Ex ia)
No
Front build in possible
No
Supporting protocol for KNX
No
Appendant operation agent (Ex ib)
No
IO link master
No
Suitable for safety functions
No
Supply voltage DC (V)
19.2…28.8 Volt
Rack-assembly possible
No
Wall mounting/direct mounting
Yes
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Number of HW-interfaces USB
1
With optical interface
No
Number of digital outputs
16
Number of digital inputs
24
Number of analogue outputs
0
Number of analogue inputs
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
2
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
2
With display
No
Number of HW-interfaces Wireless
0
Category according to EN 954-1
1
Redundancy
No
Type of memory
NVRAM
Memory size (kByte)
64000
Number of relay outputs
0
Max. number of time switches
0
Additional program memory possible
Yes
Processing time (1K, binary operation) (ms)
0.022
Supporting protocol for EtherCAT
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
Supporting protocol for IEC 61850 Ethernet
No
Supporting protocol for IEC 60870
No
Supporting protocol for DNP3
No
Long-Term Evolution (LTE)
No
