Degree of protection (IP)
IP55

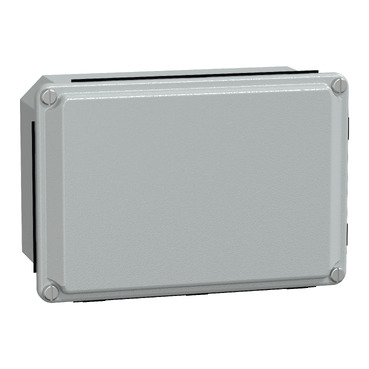

Model
Junction box
Mounting method
Wall-/ceiling mounting
Sealable
No
Colour
Grey
Length (mm)
155
Width (mm)
105
Depth (mm)
61
Degree of protection (NEMA)
13
Shape
Rectangular
Material
Steel
Tackable
No
Surface protection
Other
Cover model
Blind cover
Circuit integrity
None
For Ex-zone gas
None
Number of inlets
3
Cover attachment
Screwed
For Ex-Zone dust
None
Explosion-tested version
No
Equipped with
None
Inlet from the rear
No
With screening
No
Casting compound included
No
Transparent cover
No
Castable
No
For tube diameter
32 mm
Max. conductor cross section (mm²)
32.5
Mounting under water
No
Weatherproof
Yes
Mounting in the soil
No
Type of housing feed-through
None
