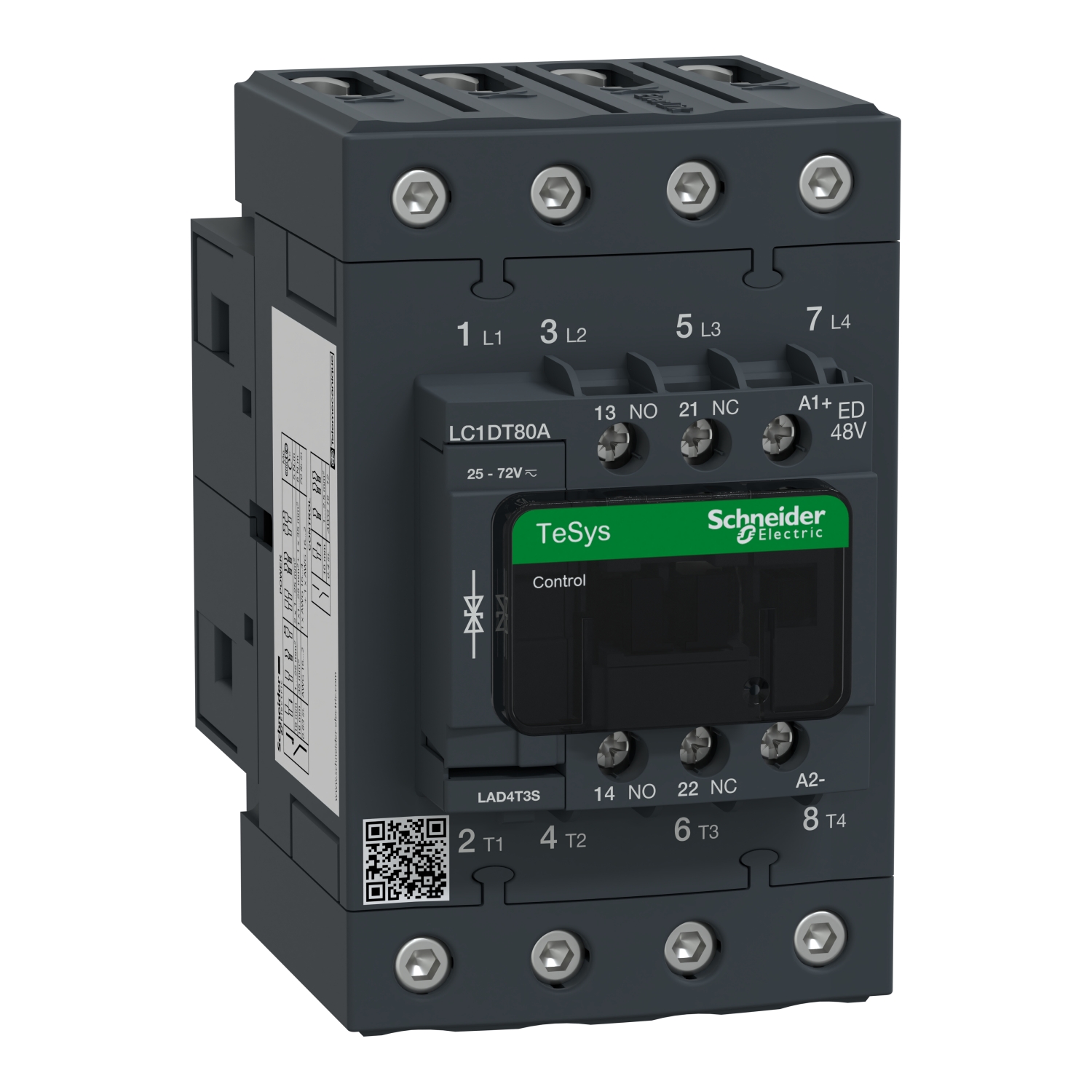

Tip
LC1D
Max. nazivni tok (A)
80
Max. nazivna moč pri 400 V AC (kW)
37
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1
Št. polov
4 P
Tip napetosti
DC
Krmilna napetost (V)
48 V
Tip bremena
AC-1
Vrsta kontaktorja
standardni
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
48 Volt
Type of electrical connection of main circuit
Screw connection
Height (mm)
122
Width (mm)
70
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Depth (mm)
120
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
4
Modular version
No
Rated operation current Ie at AC-1, 400 V (A)
80
