Tip

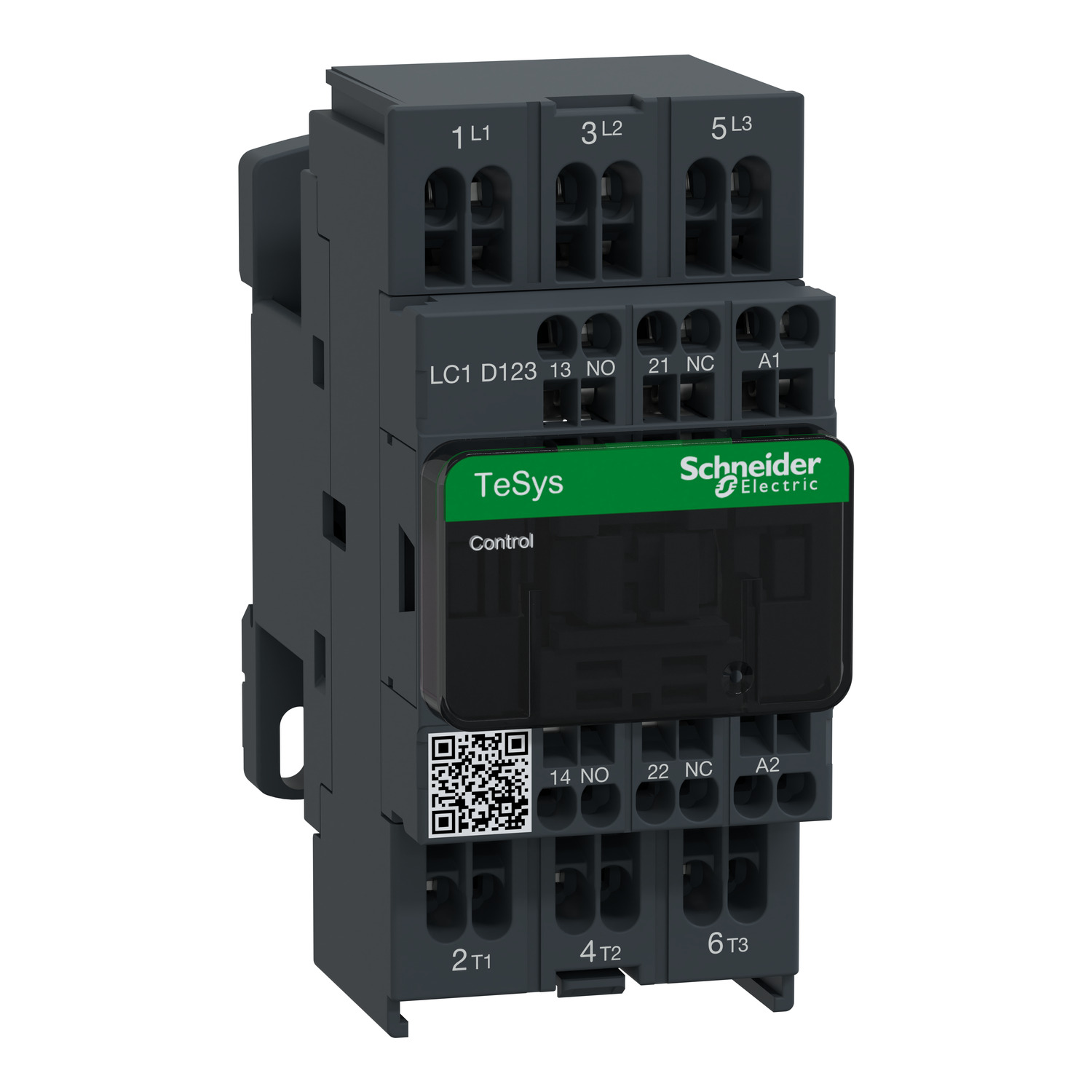

LC1D
Max. nazivni tok (A)
12
Max. nazivna moč pri 400 V AC (kW)
5.5
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vzmetni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1
Št. polov
3 P
Tip napetosti
AC
Krmilna napetost (V)
24 V
Tip bremena
AC-3
Vrsta kontaktorja
standardni
Rated control supply voltage Us at AC 50HZ (V)
24 Volt
Rated control supply voltage Us at AC 60HZ (V)
24 Volt
Voltage type for actuating
AC
Type of electrical connection of main circuit
Spring clamp connection
Height (mm)
99
Width (mm)
45
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Depth (mm)
86
Rated operation current Ie at AC-3, 400 V (A)
12
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
3
Modular version
No
Rated operation current Ie at AC-1, 400 V (A)
20
Rated operation current Ie at AC-4, 400 V (A)
7.5
Rated operation power at AC-4, 400 V (kW)
3
Operating voltage at AC 50 Hz (V)
440 Volt
Operating voltage at AC 60 Hz (V)
440 Volt
