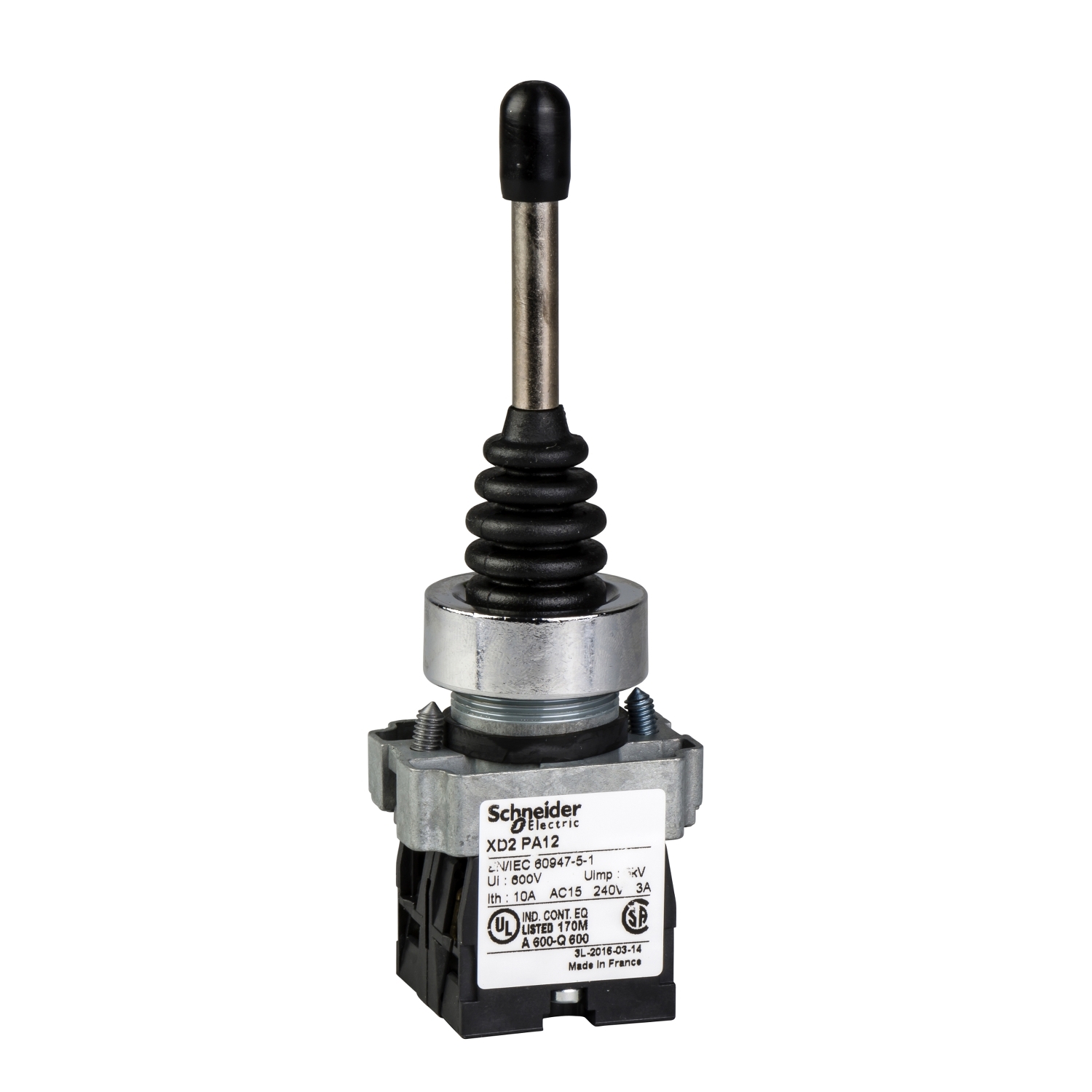

Tip
XD2
Premer (mm)
22 mm
Vrsta produkta
kompletna krmilna palica
Št. smeri
2
Št. kontaktov NO/NC na smer
1 NO
Degree of protection (IP)
IP66
Degree of protection (NEMA)
Other
With front ring
Yes
With retraction in 0-position
No
Colour front ring
Black
Number of switch positions
2
Material front ring
Plastic
Rated operation current Ie at AC-21, 400 V (A)
10
Number of normally open contacts per actuation direction
1
Analogue output signal configurable
No
Joy stick length (mm)
79
Coder
No
Number of make-and-break contacts per direction
0
Centre mounting, hole diameter (mm)
22
Number of actuation directions
2
Locking in 0-position
No
Number of normally closed contacts per actuation direction
0
Number of switch levels
0
