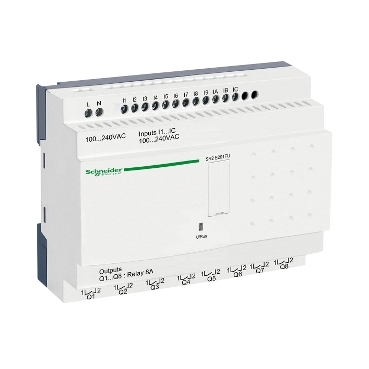

Tip
SR2
Max. nazivni tok (A)
8
Vrsta releja
kompaktni
Napajalna napetost (V)
240 V
Tip napajalne napetosti
AC
Programski jezik
LD, FDB
Št. digitalnih vhodov
12
Št. digitalnih izhodov
8
Ura
da
Zaslon
ne
Vrsta digitalnega izhoda
relejski
Dodatek - kabel za programiranje
SR2USB01
Degree of protection (IP)
IP20
Voltage type of supply voltage
AC
Supporting protocol for SERCOS
No
Height (mm)
90
Supporting protocol for INTERBUS-Safety
No
Width (mm)
124.6
Supporting protocol for AS-Interface Safety at Work
No
Depth (mm)
59.5
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Rail mounting possible
Yes
Supporting protocol for DeviceNet
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for LON
No
Supporting protocol for other bus systems
No
Supporting protocol for SUCONET
No
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
No
Explosion safety category for dust
None
Radio standard GSM
No
Radio standard UMTS
No
Explosion safety category for gas
None
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Appendant operation agent (Ex ia)
No
Front build in possible
Yes
Supporting protocol for KNX
No
Appendant operation agent (Ex ib)
No
IO link master
No
Suitable for safety functions
No
Rack-assembly possible
No
Wall mounting/direct mounting
Yes
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
With optical interface
No
Number of digital outputs
8
Number of digital inputs
12
Number of analogue outputs
0
Number of analogue inputs
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
1
With display
No
Expandable
No
Number of HW-interfaces Wireless
0
Basic device
Yes
With relay output
Yes
Category according to EN 954-1
1
Redundancy
No
Expansion device
No
With timer
Yes
Supply voltage AC 50 Hz (V)
100…240 Volt
Supply voltage AC 60 Hz (V)
100…240 Volt
Switching current (A)
8
Power consumption (W)
11
Supporting protocol for EtherCAT
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
