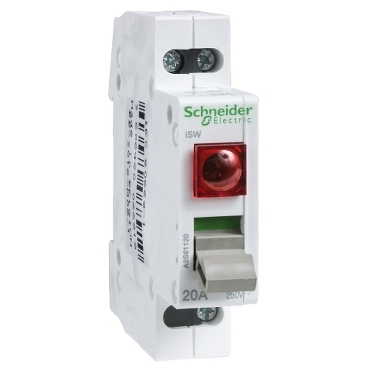

Tip
iSW
Tok
20
Napetost
DC
Št. polov
2 P
Built-in depth (mm)
75.5
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Rated current (A)
20
Rated voltage (V)
250
Voltage type
AC
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
0
With signal lamp
Yes
Switching function
Off switch with control lamp
Colour calotte
Red
Forced segregation (according to DIN VDE 0113)
Yes
Number of poles
2
Min. rated voltage (V)
230
Max. lamp power (W)
1.2
Imprint/indication
Other
Forced segregation according to DIN VDE 0113
Yes
