Tip

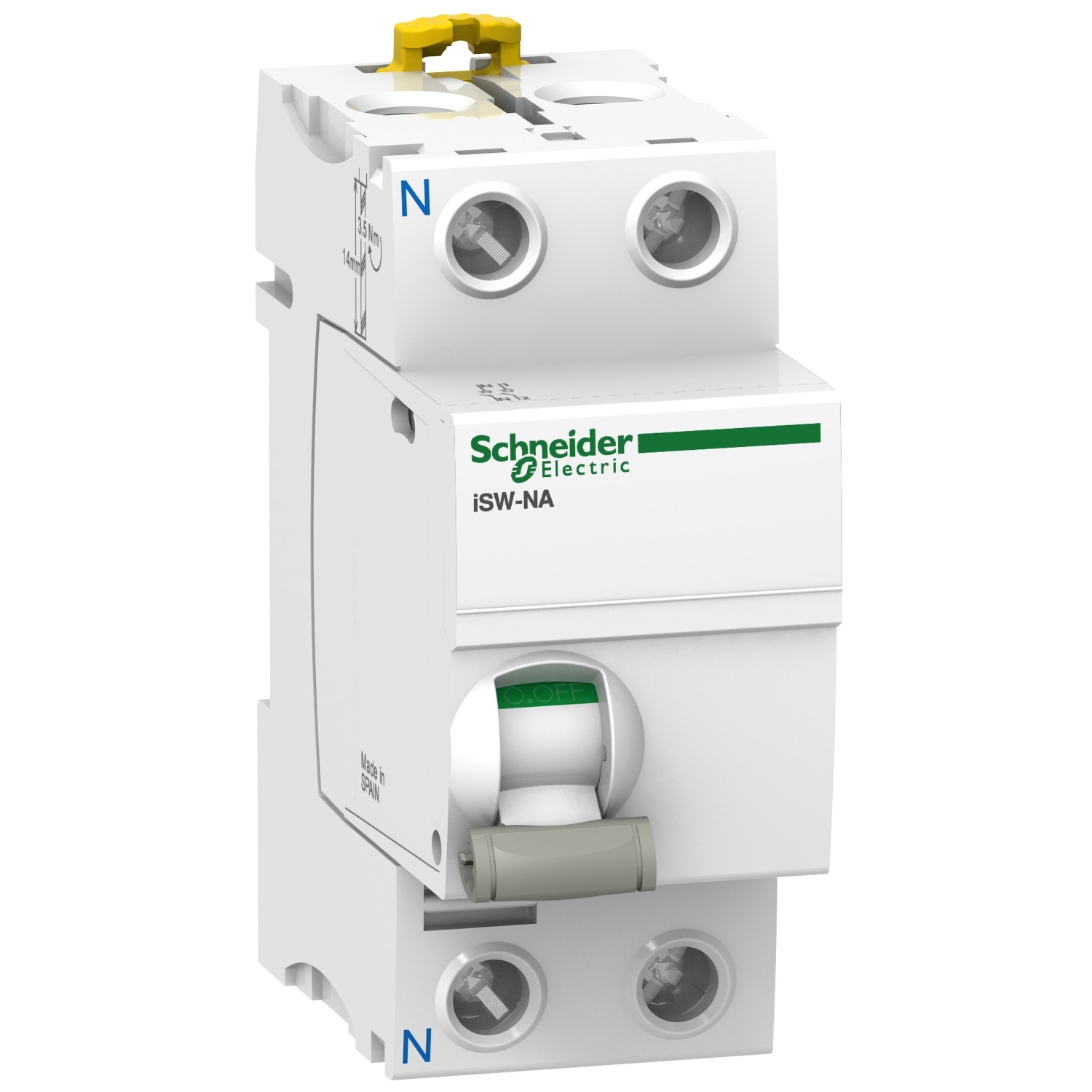

iSW
Tok
80
Napetost
AC
Št. polov
1P+N
Built-in depth (mm)
74.5
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Rated current (A)
80
Rated voltage (V)
240
Voltage type
AC
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
0
Rated switching capacity (kA)
5
With signal lamp
No
Short-circuit breaking capacity (Icw) (kA)
1.2
Switching function
Off switch
Colour calotte
White
Forced segregation (according to DIN VDE 0113)
Yes
Number of poles
2
Min. rated voltage (V)
230
Imprint/indication
None
Forced segregation according to DIN VDE 0113
Yes
