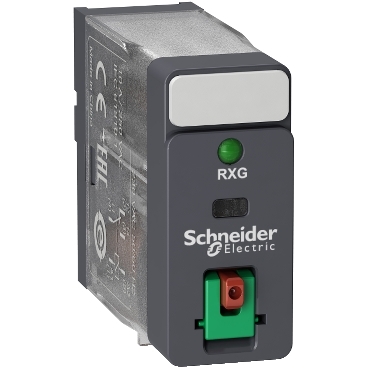

Tip
RXG
Tip napetosti
AC
Krmilna napetost (V)
120 V
Širina (mm)
13
Nazivni tok (A)
10
Št. kontaktov
1
Indikacija LED
da
Vrsta releja
interface vtični rele
Dodatek - podnožje
RGZE1S35M
Dodatek - oznaka
RSZL300
Dodatek - dioda
RZM021FP
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Type of electric connection
Flat plug-in connection
Rated control supply voltage Us at AC 50HZ (V)
120 Volt
Rated control supply voltage Us at AC 60HZ (V)
120 Volt
Voltage type for actuating
AC
Height (mm)
34.5
Width (mm)
13
Depth (mm)
28.8
With LED indication
Yes
Drive, switching attitude
Mono stable
With forced-guided contacts
No
Nominal current (A)
10
Drive, polarization
Polarity free
Type of switch contact
Single contact
Complete with socket
No
With detachable clamps
No
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
