Tok
125
Št. polov
3 P+E
Tip napetosti
AC
IP zaščita
IP67
Montaža
kotna

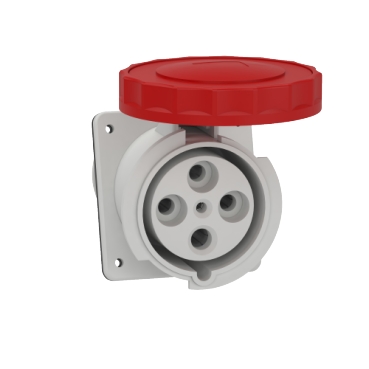

Vrsta produkta
vtičnica
Max. napetost (V)
415 V
Degree of protection (IP)
IP67
Number of poles
4
Material
Plastic
RAL-number
7035
Rated voltage (V)
380…415 Volt
IEC-amperage (A)
125
Connection system
Screwed terminal
Voltage acc. EN 60309-2
400 V (50+60 Hz) red
Identification colour
Red
Clock hour position (h)
6
Military model
No
Flange size vertical (mm)
114
Flange size horizontal (mm)
110
Angle of plug
Angled
Rated frequency (Hz)
50…60 Hertz
Drill hole distance horizontal (mm)
90
Drill hole distance vertical (mm)
90
