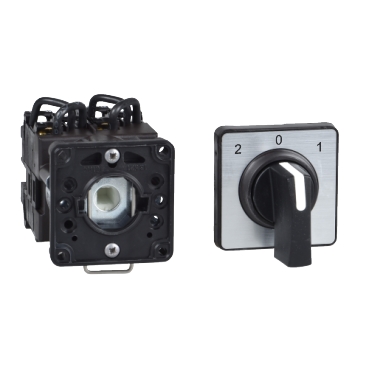

Tip
K1
Max. nazivni tok (A)
12
Max. nazivna moč pri 400 V AC (kW)
15
Št. polov
3 P
Premer (mm)
22 mm
Vrsta stikala
grebenasto preklopno stikalo
Sestavni del
stikalo
Kot preklopa
45°
Nazivni tok (A)
12
Model
Reverser
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-3, 400 V (A)
3.3
Number of auxiliary contacts as change-over contact
0
Material housing
Plastic
Type of control element
Long turning handle
With 0 (off) position
Yes
With retraction in 0-position
No
Degree of protection (IP), front side
IP65/IP67
Complete device in housing
Yes
Suitable for front mounting 4-hole
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Suitable for ground mounting
No
