Tip

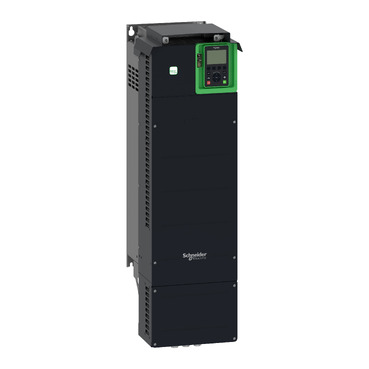

ATV630
Število faz
3
Max. nazivna moč pri 400 V AC (AC-3)
75
Uporaba
zahtevne aplikacije
Vrsta bremena
črpalke/ventilatorji
Montaža
stenska
Dušilka
da
Filter
EMC C3
Napetost obratovanja (AC)
380-480 V
Stopnja zaščite (IP)
IP21
Komunikacija
Modbus RS485
Degree of protection (IP)
IP21
Supporting protocol for SERCOS
No
Height (mm)
922
Supporting protocol for INTERBUS-Safety
No
Width (mm)
290
Supporting protocol for AS-Interface Safety at Work
No
Depth (mm)
323
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for LON
No
Supporting protocol for other bus systems
No
Supporting protocol for SUCONET
No
Supporting protocol for KNX
No
With control unit
Yes
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
With optical interface
Yes
Type of converter
U converter
Mains voltage (V)
380…480 Volt
Max. output frequency (Hz)
500
Mains frequency
50/60 Hz
With PC connection
No
Number of phases input
3
Max. output at quadratic load at rated output voltage (kW)
7.5
Max. output at linear load at rated output voltage (kW)
7.5
Number of phases output
3
Relative symmetric net voltage tolerance (%)
10
Relative symmetric net frequency tolerance (%)
5
Application in domestic- and commercial area permitted
Yes
Integrated breaking resistance
No
Application in industrial area permitted
Yes
Supporting protocol for BACnet
No
Number of digital outputs
0
Number of digital inputs
6
Number of analogue outputs
2
Number of analogue inputs
3
4-quadrant operation possible
Yes
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Nominal output current I2N (A)
145
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
0
Max. output voltage (V)
480
