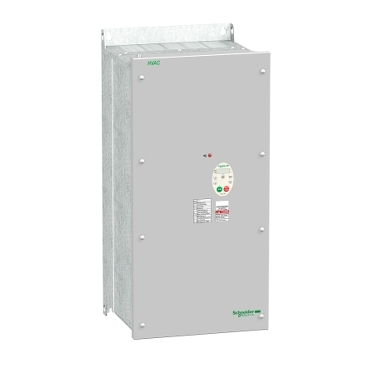

Tip
ATV212
Max. nazivni tok (A)
74.8
Število faz
3
Max. nazivna moč pri 400 V AC (AC-3)
18.5
Uporaba
standardna aplikacija
Vrsta bremena
črpalke/ventilatorji
Montaža
stenska
Dušilka
da
Filter
EMC C1
Napetost obratovanja (AC)
380-480 V
Stopnja zaščite (IP)
IP55
Komunikacija
Modbus RS485
Degree of protection (IP)
IP55
Supporting protocol for SERCOS
No
Height (mm)
665
Supporting protocol for INTERBUS-Safety
No
Width (mm)
310
Supporting protocol for AS-Interface Safety at Work
No
Depth (mm)
315
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for DeviceNet
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for LON
Yes
Supporting protocol for other bus systems
Yes
Supporting protocol for SUCONET
No
Supporting protocol for KNX
No
With control unit
Yes
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
With optical interface
No
Type of converter
U converter
Mains voltage (V)
380…480 Volt
Max. output frequency (Hz)
200
Mains frequency
50/60 Hz
With PC connection
Yes
Number of phases input
3
Max. output at quadratic load at rated output voltage (kW)
18.5
Max. output at linear load at rated output voltage (kW)
18.5
Number of phases output
3
Relative symmetric net voltage tolerance (%)
10
Relative symmetric net frequency tolerance (%)
5
Application in domestic- and commercial area permitted
Yes
Integrated breaking resistance
No
Application in industrial area permitted
Yes
Supporting protocol for BACnet
No
Number of digital outputs
0
Number of digital inputs
3
Number of analogue outputs
1
Number of analogue inputs
2
4-quadrant operation possible
No
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Nominal output current I2N (A)
37
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Max. output voltage (V)
480
