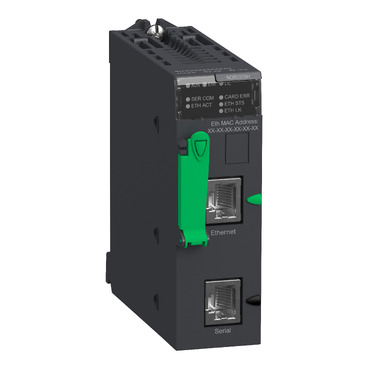

Sestavni del
komunikacijski modul
Komunikacija
Modbus RS485 / Ethernet
Supporting protocol for SERCOS
No
Height (mm)
100
Supporting protocol for INTERBUS-Safety
No
Width (mm)
29
Supporting protocol for AS-Interface Safety at Work
No
Depth (mm)
160
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for DeviceNet
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for LON
No
Supporting protocol for other bus systems
No
Supporting protocol for SUCONET
No
SIL according to IEC 61508
None
With potential separation
Yes
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
No
Explosion safety category for dust
None
Radio standard GSM
No
Radio standard UMTS
No
Explosion safety category for gas
None
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Appendant operation agent (Ex ia)
No
Supporting protocol for KNX
No
Appendant operation agent (Ex ib)
No
IO link master
No
Suitable for safety functions
No
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
With optical interface
No
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
1
Number of HW-interfaces Wireless
0
Category according to EN 954-1
1
Redundancy
No
Transmission rate (kBit/s)
100000
Type of data transmission
Module rack extension
Power consumption (W)
11
Supporting protocol for EtherCAT
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
Number of HW-interfaces CAN
0
