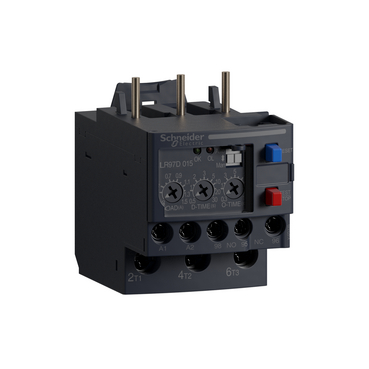

Tip
LRD
Max. nazivni tok (A)
1.5
Vrsta priklopa
vijačni
Komplementaren s serijo kontaktojev
LC1D, LC2D
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1 NO
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1 NC
Št. polov
3 P
Mounting method
Direct attachment
Rated control supply voltage Us at AC 50HZ (V)
200…240 Volt
Rated control supply voltage Us at AC 60HZ (V)
200…240 Volt
Voltage type for actuating
AC
Type of electrical connection of main circuit
Screw connection
Height (mm)
64.5
Width (mm)
45
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
67.5
Release class
Adjustable
Number of auxiliary contacts as change-over contact
1
Reset function automatic
Yes
Reset function input
Yes
Adjustable current range (A)
0.3…1.5 Ampere
Reset function push-button
Yes
Operating voltage at AC 50 Hz (V)
200…240 Volt
Operating voltage at AC 60 Hz (V)
200…240 Volt
Voltage type (operating voltage)
AC
External power supply required
No
