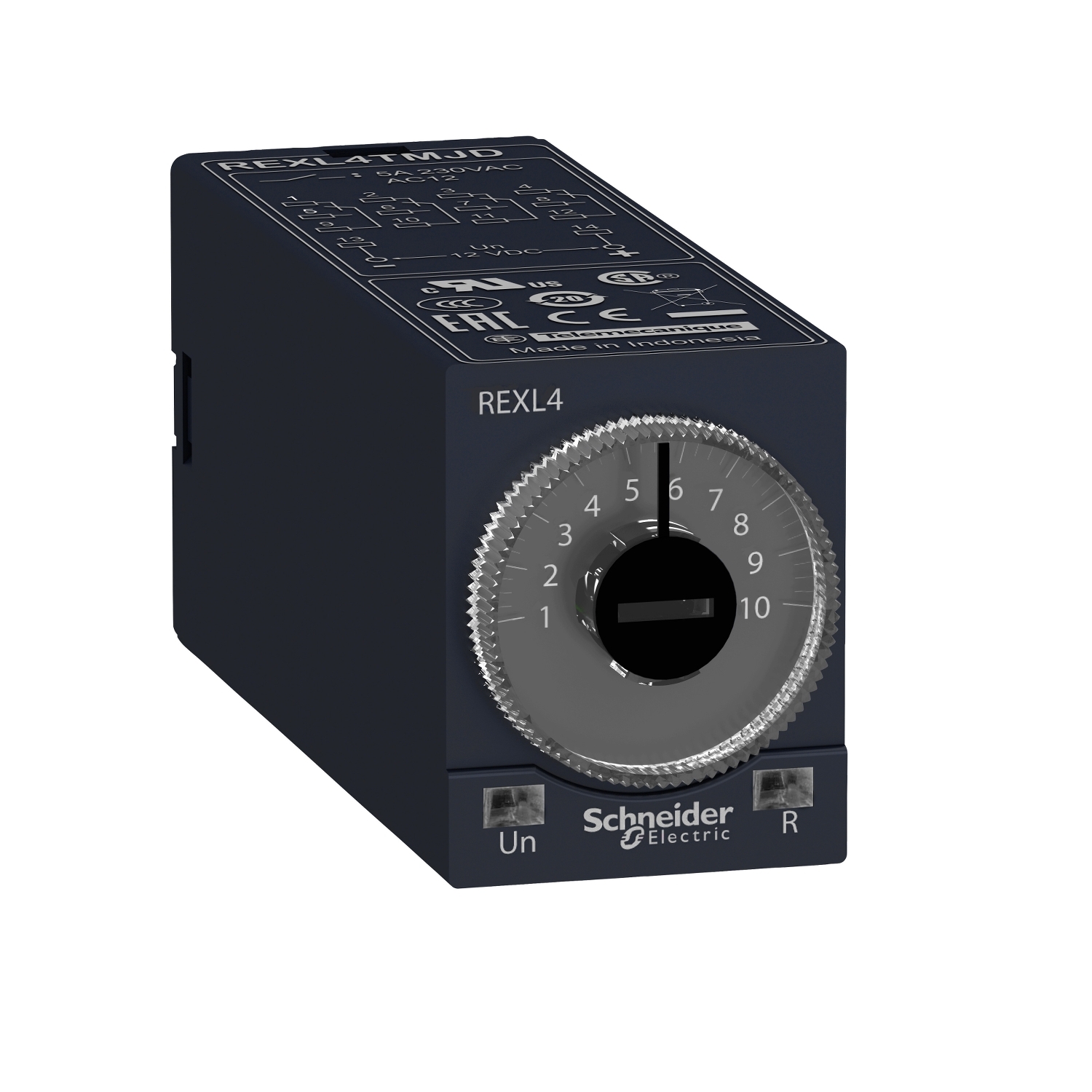

Tip
REXL
Tip napetosti
DC
Krmilna napetost (V)
24 V
Nazivni tok (A)
5
Št. kontaktov
4 C/O
Funkcija releja
zakasnjen vklop
Območje časovnega zamika
0.1 s - 100 h
Izhod
relejski
Type of electric connection
Plug-in connection
Rated control supply voltage Us at AC 50HZ (V)
0 Volt
Rated control supply voltage Us at AC 60HZ (V)
0 Volt
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 Volt
Height (mm)
27
Width (mm)
21
Depth (mm)
63
Nominal current (A)
5
Complete with socket
No
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, normally closed contact
0
Function delay on de-energization
No
Pluggable on auxiliary contact block
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Number of outputs, undelayed, change-over contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, normally closed contact
0
Function floating contact on de-energization
No
Function pulse shaping
No
Suitable for front mounting
No
Function delay-on energization
Yes
Number of outputs, delayed, change-over contact
4
With semiconductor output
No
Suitable for DIN rail (top hat rail) mounting
No
Function floating contact on energization
No
Outputs, reversible delayed/undelayed
No
With plug-in socket
Yes
Function star-delta
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Remote operation possible
No
Suitable for remote control
No
Time range (s)
0.1…360000 Second
