Tip

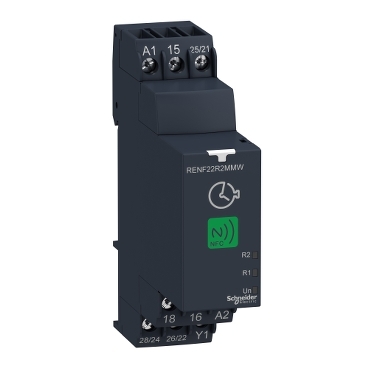

RENF22
Tip napetosti
AC/DC
Krmilna napetost (V)
24-240 V
Širina (mm)
22.5
Nazivni tok (A)
8
Št. kontaktov
2 C/O
Funkcija releja
večfunkcijski
Območje časovnega zamika
0.1 s - 999 h
Izhod
relejski
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 Volt
Rated control supply voltage Us at AC 60HZ (V)
24…240 Volt
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24…240 Volt
Height (mm)
90
Width (mm)
22.5
Depth (mm)
73
Nominal current (A)
8
Complete with socket
No
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, normally closed contact
0
Function delay on de-energization
No
Pluggable on auxiliary contact block
No
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
Yes
Number of outputs, undelayed, change-over contact
1
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, normally closed contact
0
Function floating contact on de-energization
No
Function pulse shaping
Yes
Function delay-on energization
No
Number of outputs, delayed, change-over contact
2
With semiconductor output
No
Suitable for DIN rail (top hat rail) mounting
No
Function floating contact on energization
No
Outputs, reversible delayed/undelayed
Yes
With plug-in socket
No
Function star-delta
Yes
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Remote operation possible
Yes
Suitable for remote control
No
Time range (s)
0.1…3600000 Second
