Tip

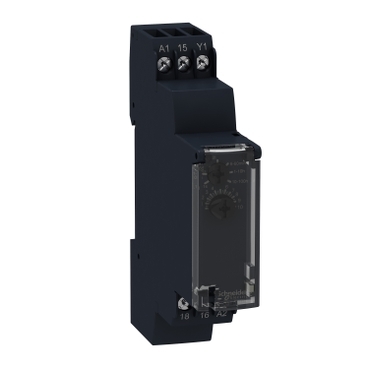

RE17
Tip napetosti
AC
Krmilna napetost (V)
24-240 V
Širina (mm)
17.5
Nazivni tok (A)
8
Št. kontaktov
1 C/O
Funkcija releja
impulzni
Območje časovnega zamika
1 s - 100 h
Izhod
relejski
Degree of protection (IP)
IP20
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 Volt
Rated control supply voltage Us at AC 60HZ (V)
24…240 Volt
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24 Volt
Height (mm)
90
Width (mm)
175
Depth (mm)
72
Nominal current (A)
8
Complete with socket
No
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, normally closed contact
0
Function delay on de-energization
No
Pluggable on auxiliary contact block
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Number of outputs, undelayed, change-over contact
1
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, normally closed contact
0
Function floating contact on de-energization
No
Function pulse shaping
Yes
Suitable for front mounting
Yes
Function delay-on energization
No
Number of outputs, delayed, change-over contact
0
With semiconductor output
No
Suitable for DIN rail (top hat rail) mounting
Yes
Function floating contact on energization
No
Outputs, reversible delayed/undelayed
No
With plug-in socket
No
Function star-delta
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Remote operation possible
No
Suitable for remote control
No
Time range (s)
0.1…360000 Second
