Tip

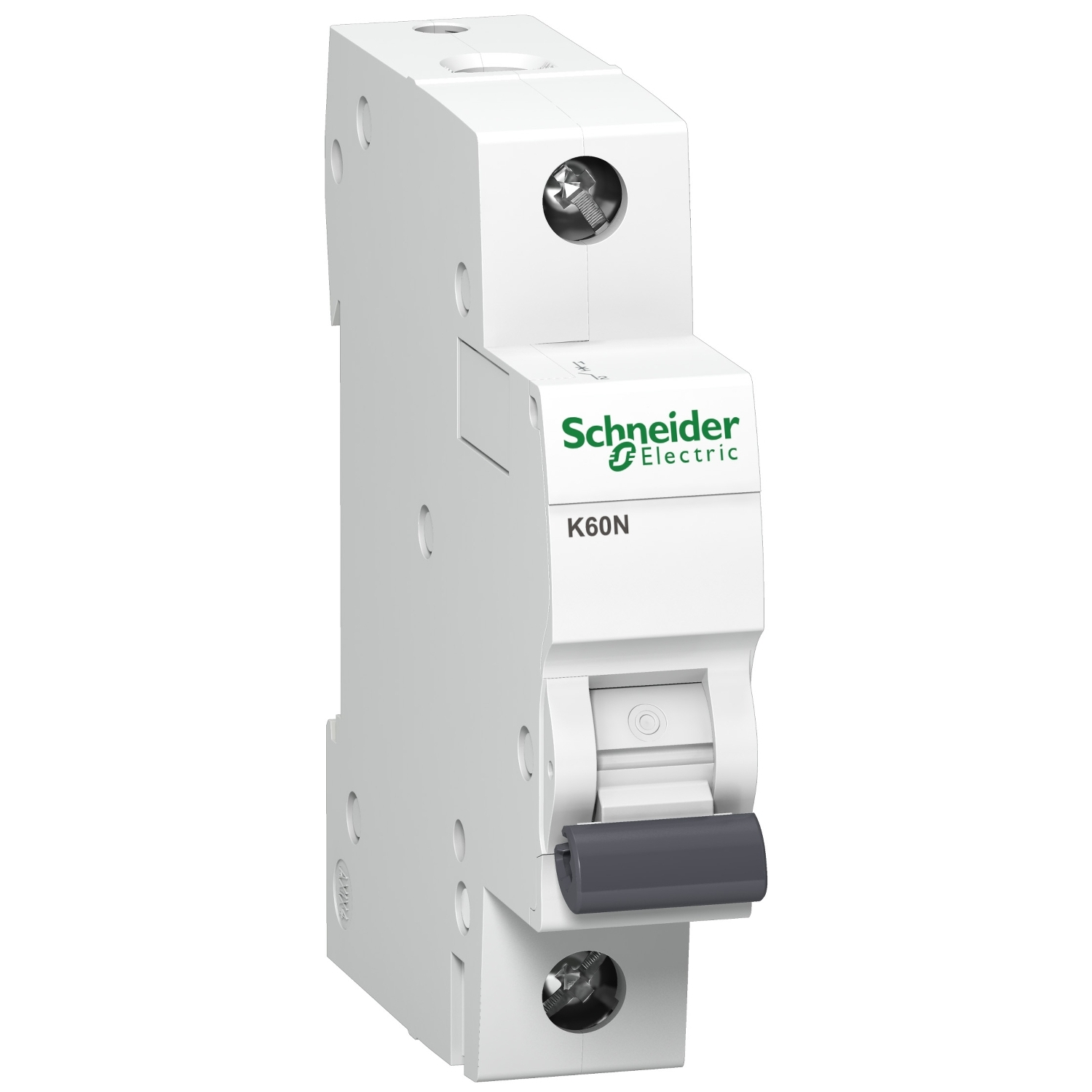

K60
Tok
6
Kratkostična zmogljivost
6 kA
Izklopilna krivulja
Krivulja B
Napetost
AC
Št. polov
1 P
Built-in depth (mm)
44.5
Frequency (Hz)
50…60 Hertz
Number of poles (total)
1
Rated insulation voltage Ui (V)
440
Width in number of modular spacings
1
Number of protected poles
1
Additional equipment possible
No
Rated impulse withstand voltage Uimp (kV)
4
Degree of protection (IP)
IP20
Rated current (A)
6
Rated voltage (V)
230
Release characteristic
B
Concurrently switching N-neutral
No
Voltage type
AC
Connectable conductor cross section solid-core (mm²)
0.5…35 Square millimetre
Ambient temperature during operating (°C)
-25…70 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
0.5…25 Square millimetre
Pollution degree
2
Rated short-circuit breaking capacity Icn EN 60898 at 230 V (kA)
6
Current limiting class
3
Flush-mounted installation
No
Explosion-proof
No
