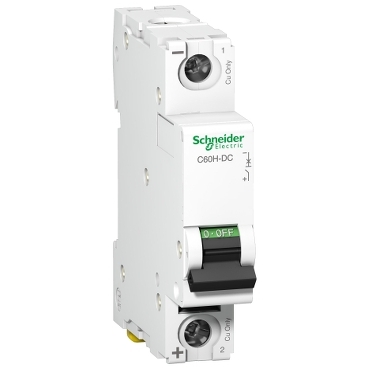

Tip
C60-DC
Tok
20
Kratkostična zmogljivost
10 kA
Izklopilna krivulja
Krivulja C
Napetost
DC
Št. polov
1 P
Built-in depth (mm)
44
Number of poles (total)
1
Rated insulation voltage Ui (V)
500
Width in number of modular spacings
2
Number of protected poles
1
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp (kV)
6
Degree of protection (IP)
IP20
Rated current (A)
20
Rated voltage (V)
220
Release characteristic
C
Concurrently switching N-neutral
No
Voltage type
DC
Connectable conductor cross section solid-core (mm²)
1…25 Square millimetre
Over voltage category
4
Ambient temperature during operating (°C)
-25…70 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
1…16 Square millimetre
Pollution degree
3
Suitable for flush-mounted installation
No
Flush-mounted installation
No
Explosion-proof
No
Power loss (Watt)
3
