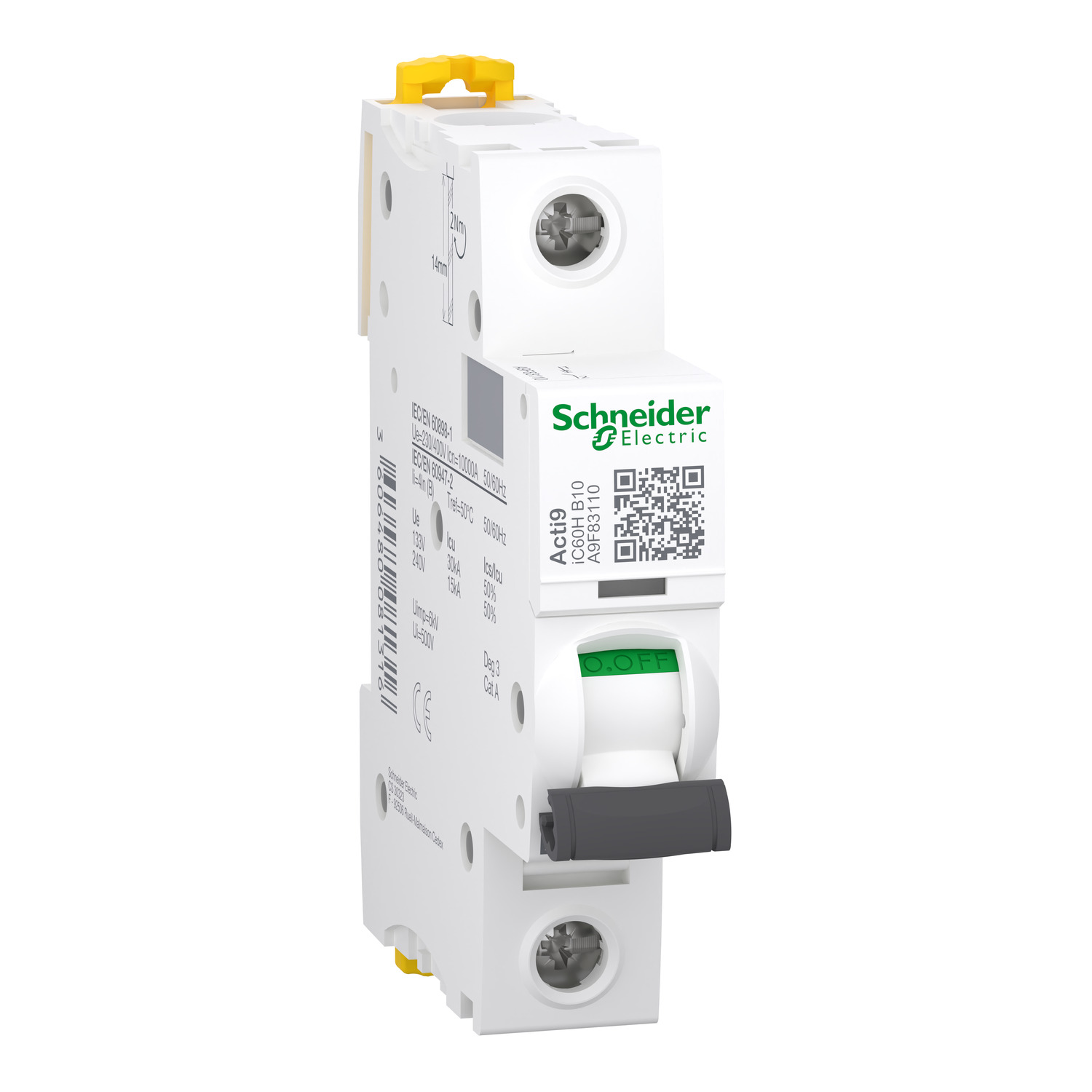

Tip
iC60
Tok
10
Kratkostična zmogljivost
10/15 kA
Izklopilna krivulja
Krivulja B
Napetost
AC
Št. polov
1 P
Built-in depth (mm)
44.5
Frequency (Hz)
50…60 Hertz
Number of poles (total)
1
Rated insulation voltage Ui (V)
500
Width in number of modular spacings
1
Number of protected poles
1
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (kA)
15
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp (kV)
6
Degree of protection (IP)
IP20
Rated current (A)
10
Rated voltage (V)
230
Release characteristic
B
Concurrently switching N-neutral
No
Voltage type
AC/DC
Connectable conductor cross section solid-core (mm²)
1…25 Square millimetre
Over voltage category
4
Ambient temperature during operating (°C)
-35…70 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
1…16 Square millimetre
Pollution degree
3
Suitable for flush-mounted installation
No
Rated short-circuit breaking capacity Icn EN 60898 at 230 V (kA)
10
Current limiting class
3
Flush-mounted installation
No
Explosion-proof
No
Power loss (Watt)
2.3
