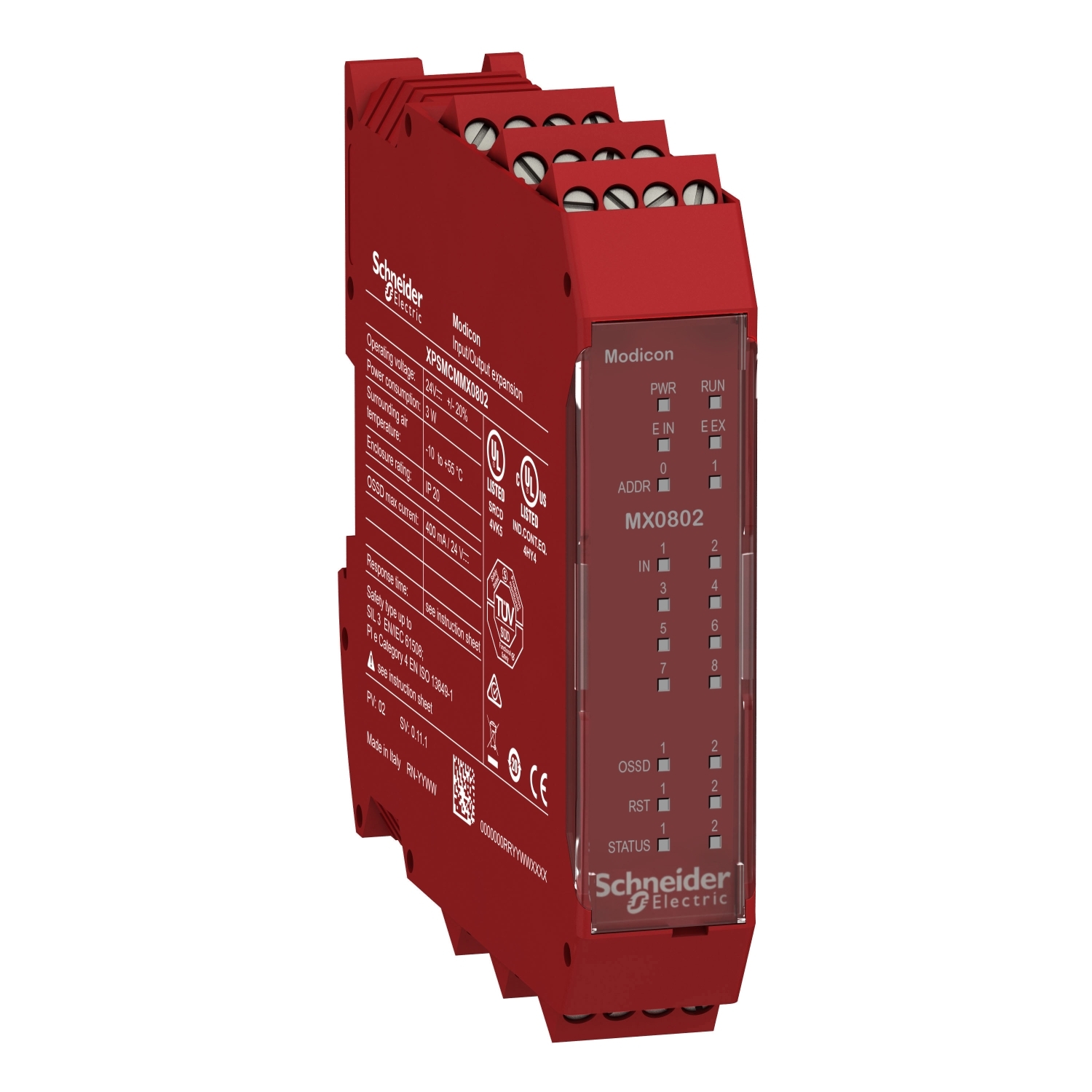

Tip
XPSM
Namen
razširitveni modul
Type of electric connection
Screw connection
Model
Expansion device
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 V
Voltage type of supply voltage
DC
Height (mm)
99
Width (mm)
22.5
Depth (mm)
114.5
Rail mounting possible
Yes
SIL according to IEC 61508
3
Performance level acc. EN ISO 13849-1
Level e
Supply voltage DC (V)
24 Volt
With detachable clamps
Yes
Category according to EN 954-1
None
Power consumption (W)
11
Number of outputs, safety related, delayed, with contact
4
Number of outputs, safety related, undelayed, semiconductors
0
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
4
With approval according to UL
Yes
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Evaluation inputs
Other
Stop category acc. IEC 60204
0 + 1
With approval for TÜV
Yes
With approval for BG BIA
No
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Suitable for monitoring of position switches
No
Suitable for monitoring of tactile sensors
No
Suitable for monitoring of valves
Yes
Type of safety acc. IEC 61496-1
4
Suitable for monitoring of magnetic switches
No
Suitable for monitoring of proximity switches
No
Suitable for monitoring of emergency-stop circuits
No
Suitable for monitoring of optoelectronic protection equipment
No
With muting function
No
With start input
Yes
Operating voltage at DC (V)
24 Volt
Voltage type (operating voltage)
DC
With approval for TÜV
Yes
